6.3kV 2000kVA Diesel Generator | Mitsubishi S16R-PTAA2-C

6.3kV 2000kVA Diesel Generator | Mitsubishi S16R-PTAA2-C

The 6.3kV 2000kVA Diesel Generator powered by Well-known brand Mitsubishi with engine model S16R-PTAA2-C, High-displacement, high-effenciency, ideal for the application of data center, building backup power, manufacuring etc, contact us right now to acquire the factory direct sale price

  • Item no.:

    A-M2200

  • Payment:

    TT/LC

  • Product origin:

    China

  • Color:

    Customized

  • Lead Time:

    60
Inquiry now

6.3kV 2000kVA Diesel Generator | Mitsubishi S16R-PTAA2-C

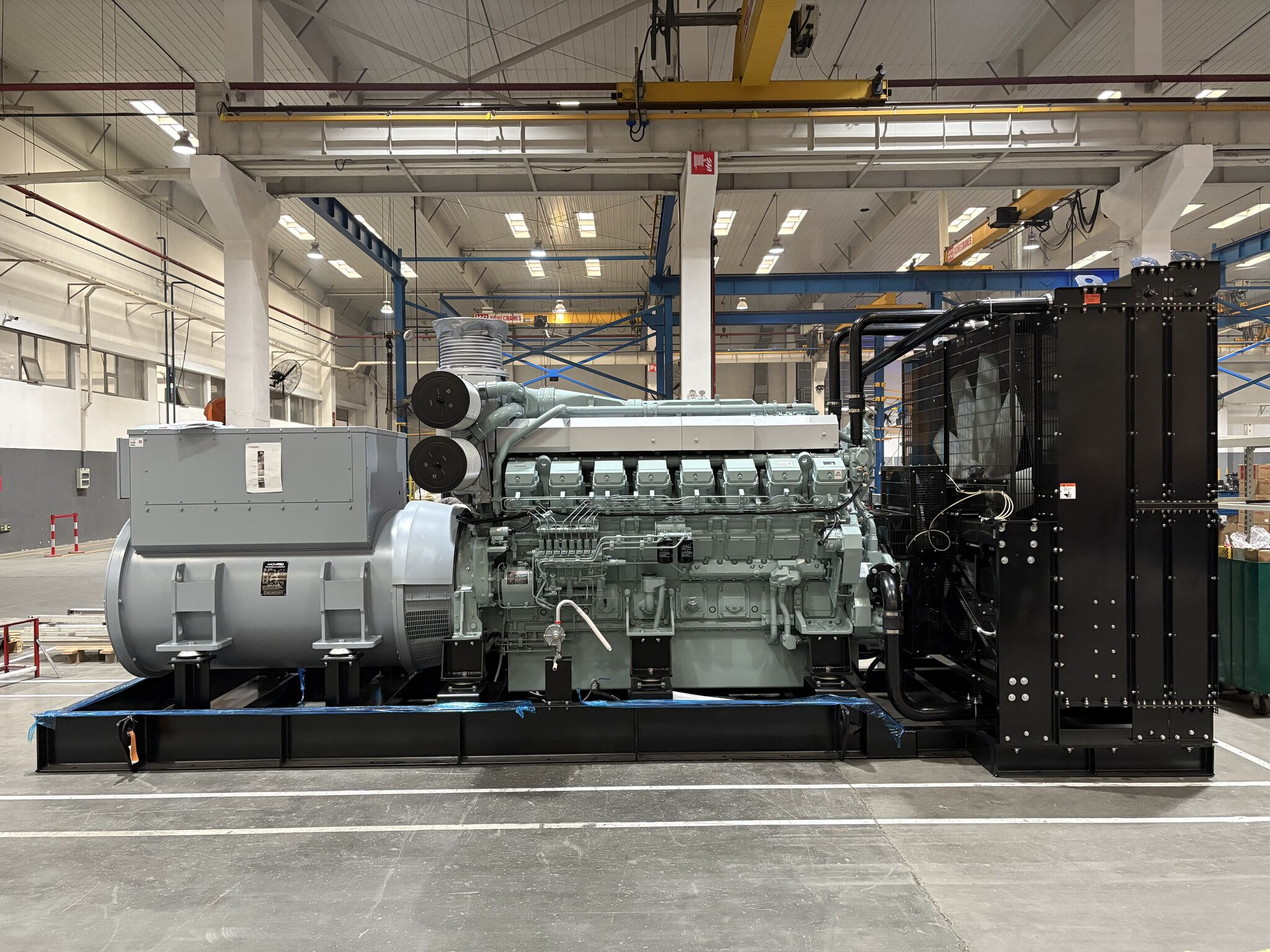

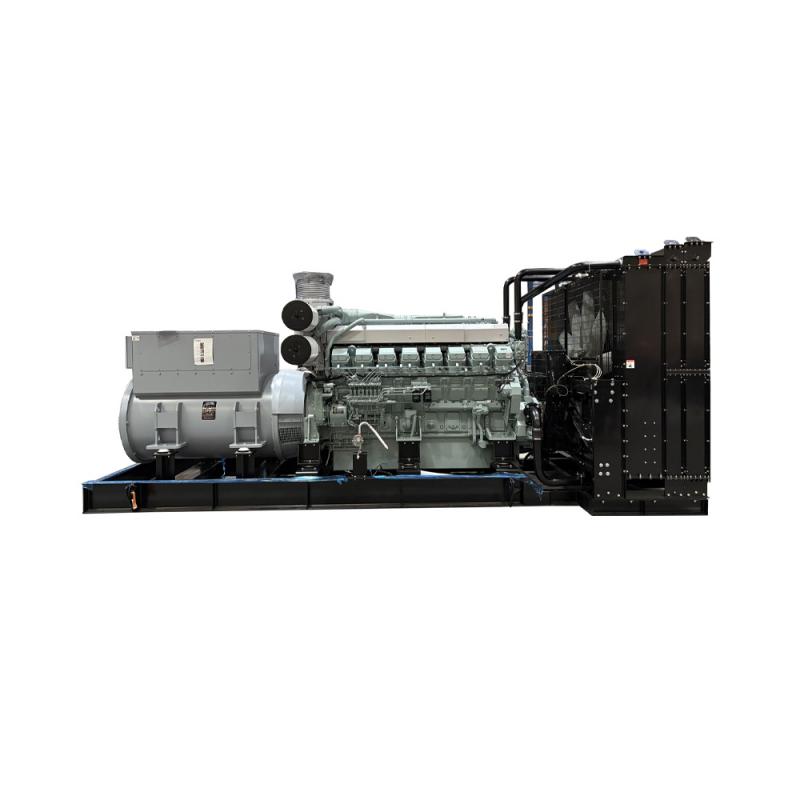

The Mitsubishi S16R-PTAA2-C 2000kVA diesel generator set is a high-performance, heavy-duty power solution designed for industrial and commercial applications requiring medium voltage output. Powered by Mitsubishi’s robust and reliable S16R-PTAA2-C 16-cylinder engine, this generator delivers stable and efficient power with excellent fuel economy and low emissions.



This unit is ideal for critical power applications, such as data centers, mining operations, power plants, hospitals, and large manufacturing facilities that require continuous or emergency standby power at 6.3kV.



SME (Shanghai Mitsubishi Engine Co., Ltd.) is a joint venture established by Shanghai Diesel Engine Co., Ltd. and Mitsubishi Heavy Industries, Ltd. from Japan. The company specializes in manufacturing Mitsubishi-licensed S6R2, S12R, and S16R series diesel engines, which are widely used in land-based power generation applications.



These advanced engines are designed with Japanese technology and precision, offering exceptional reliability, high power output, and robust performance for industrial power systems ranging from 500kW to 2000kW.



S16R-PTAA2-C Technical Detail:



Parameter Value
Type 4-stroke, water-cooled
Aspiration Turbocharged, air-to-air intercooled
Cylinder Arrangement 60° V-type
Number of Cylinders 16
Bore (mm / in) 170 (6.69)
Stroke (mm / in) 180 (7.09)
Displacement (L / in³) 65.37 (3989)
Compression Ratio 14.0:1
Net Weight (kg / lb) 6650 (14663)
Gross Weight (kg / lb) 7027 (15495)



Key Observations

  • High-displacement (65.37L), 16-cylinder engine designed for heavy-duty applications.
  • Turbocharged with intercooling for improved efficiency.
  • V-type configuration (60° angle) balances power and compactness.
  • Significant weight (~7 metric tons) suggests industrial/marine use.



6.3kV 2000kVA Diesel Generator Mitsubishi S16R-PTAA2-C



FAQ:



Who manufactures Mitsubishi diesel generator engines in China?

The Mitsubishi S6R2, S12R, and S16R series diesel engines are manufactured in China by SME (Shanghai Mitsubishi Engine Co., Ltd.), a joint venture between Shanghai Diesel Engine Co., Ltd. and Mitsubishi Heavy Industries, Japan.



How is the Quality of Chinese-Made Mitsubishi Engines?

The Mitsubishi engines manufactured in China by SME (Shanghai Mitsubishi Engine Co., Ltd.) maintain high reliability and performance, thanks to Mitsubishi’s strict quality control standards. Over 60% of key engine components are imported directly from Japan, including critical parts like the fuel injection pump, injectors, and turbochargers. These engines are widely trusted for demanding applications, such as data centers, hospitals, and industrial backup power systems.
