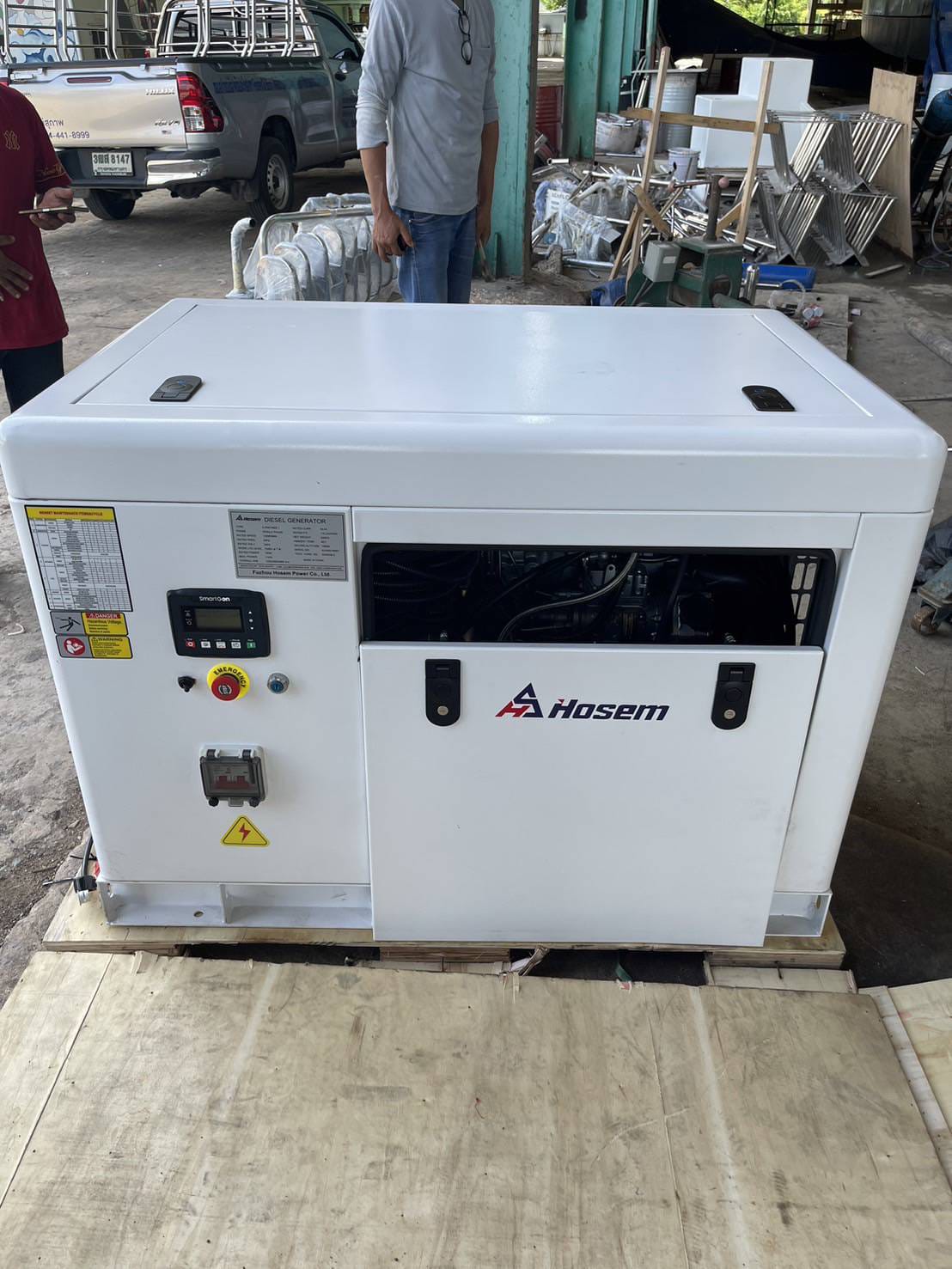

Soundproof Marine Diesel Generator Powered by Raywin

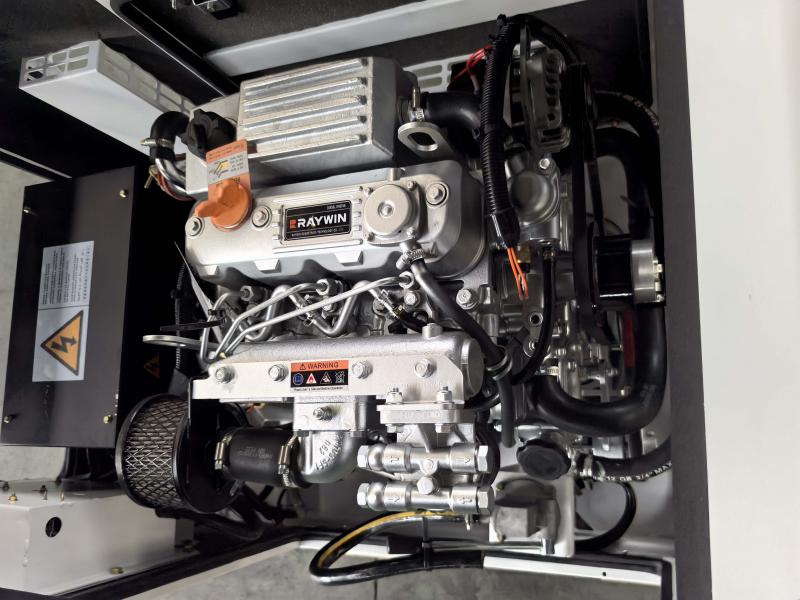

Engine Model: JE493ZDB-04 Engine Type: 4-cylinder inline, four-stroke Displacement: 2.77 liters Bore and Stroke: 93 mm x 102 mm Cooling System: Water-cooled Turbocharger: Yes Aftercooler: No Governing System: mechanical governor Starting System: Electric start Alternator Type: Brushless, self-excited Control Panel: Deepsea/ Smartgen Voltage Regulation: Automatic voltage regulation (AVR) Enclosure: Soundproof or weatherproof enclosure (optional) Fuel Tank: Integrated fuel tank (optional)   30kVA Isuzu Specification Download

Model Standby Power  Prime Power Engine Model Dimension (Open Type) Weight Datasheet kVA kW kVA kW LXWXH(MM) KG A-YM13M - - 13 10 3TNV88-GGE 1020X570X900 480 Download A-YM15M - - 15 12 4TNV88-GGE 1180X570X910 510 Download A-YM23M - - 23 18 4TNV88-GTE 1350X570X910 550 Download A-YM31M - - 31 25 4TNV88-GLE 1470X660X1120 660 Download

Assembly by Ricardo brand new engine and brand new single bearing alternator with IP23, class H. Options alternator Brands: Stamford, Leroy Somer, Marathon, Mecc Alte, Hosem, etc. Heavy-duty steel as the base plate with 8 hours operation fuel tank.  The extremely low noise level, the canopy is made of 2mm cold-rolled sheet, filled with 3cm thick flame retardant muffler cotton, complete gen-set with heavy-duty industrial type silencer with flexible bellow and elbow. Vibration damper between engine/alternator and base frame 3-pole circuit breaker. Options Controller brands: UK Deepsea, Czech ComAp, CN Smartgen etc. Full range protect function and alarm shutdown feature Comply with ISO8528 national standard and ISO9001 quality standard.

Assembly by Yangdong brand new engine and brand new single bearing alternator with IP23, class H. Options alternator Brands: Stamford, Leroy Somer, Marathon, Mecc Alte, Hosem, etc. Heavy-duty steel as the base plate with 8 hours operation fuel tank.  The extremely low noise level, the canopy is made of 2mm cold-rolled sheet, filled with 3cm thick flame retardant muffler cotton, complete gen-set with heavy-duty industrial type silencer with flexible bellow and elbow. Vibration damper between engine/alternator and base frame 3-pole circuit breaker. Options Controller brands: UK Deepsea, Czech ComAp, CN Smartgen etc. Full range protect function and alarm shutdown feature Comply with ISO8528 national standard and ISO9001 quality standard.

1. Powered by Cummins G-drive engine,   1) Water cooling, 4 stroke, 4 cylinders   2) Radiation with water tank & fan & safeguard 3. Alternator: Original Stamford/Marathon (Made in China) or Hosem Brushless Alternator   1) Single bearing, 4pole, and self-excited brushless.   2) Insulation --H class, Protection -- IP22 (IP23 in marine)   3) AVR(auto voltage regulation) Control System: Key starting, Auto control panel, Remote control panel, ATS(Auto transfer switch)   Cummins 25kVA Generator Specification

Assembly by Mitsubishi brand new engine and brand new single bearing alternator with IP23, class H. Options alternator Brands: Stamford, Leroy Somer, Marathon, Mecc Alte, Hosem, etc. Heavy-duty steel as the base plate with 8 hours operation fuel tank.  The extremely low noise level, the canopy is made of 2mm cold-rolled sheet, filled with 3cm thick flame retardant muffler cotton, complete gen-set with heavy-duty industrial type silencer with flexible bellow and elbow. Vibration damper between engine/alternator and base frame 3-pole circuit breaker. Options Controller brands: UK Deepsea, Czech ComAp, CN Smartgen etc. Full range protect function and alarm shutdown feature Comply with ISO8528 national standard and ISO9001 quality standard.

Synchronization panels serve a critical role in addressing power system needs, functioning both manually and automatically to synchronize two or more generators or breakers. These panels are extensively employed in aligning generators and providing versatile solutions. Our top-tier DG synchronizing panels, capable of accommodating connected generators up to 6300 A.

Features   1. The synchronization is fully automatic. After synchronization, the load is automatically shared and controlled according to the set proportion, increase or decrease output, add new units or stop online generating units.   2. Equipped with Deepsea DSE8610 or ComAp controller. Ensuring you complete and reliable protections against various gensets defaults, reverse power, over current, over load.   3. Enclosure shield painted by electrostatic polyester powder paint. Protection class of Ip23.
