deutz generator 20kva
deutz generator 20kva

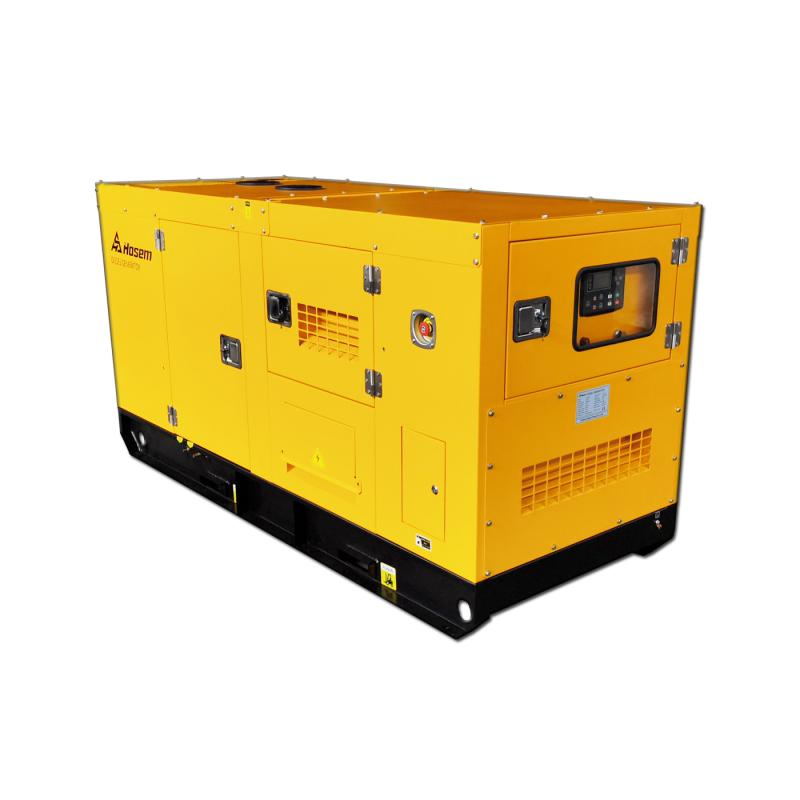

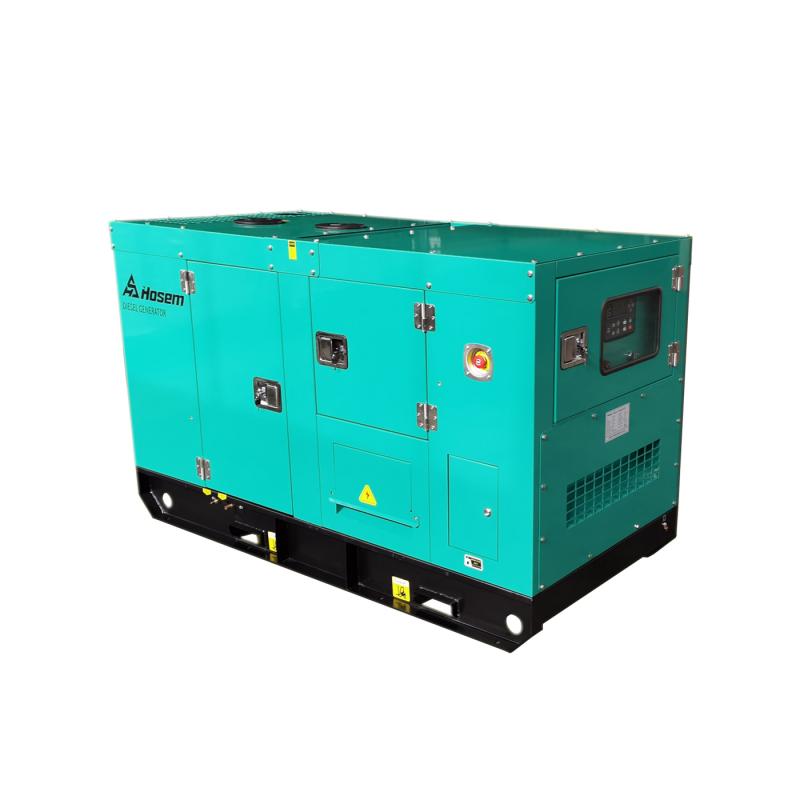

20kVA Deutz Generator

Power Output: 20kVA

Engine Type: Four-cylinder, four-stroke, water-cooled Deutz diesel engine

Voltage Regulation: Automatic Voltage Regulator (AVR)

Start System: 24-volt electric starter

Safety Features: Low oil pressure shutdown, low fuel cut-out protection, low water cut-out engine protection

Noise Level: 65-70dBA @ 7m

Enclosure: Weatherproof and soundproof, high-grade steel with powder coat painting

Fuel Efficiency: 8 hours running @ full load on a single tank of fuel

Control Panel: Digital control panel

Excitation Mode: Brushless self-excitation

Access Doors: Dual access doors for easy maintenance

Optional Features: Automatic or manual transfer switches available



20kVA Deutz Generator Specification

  • Item no.:

    A-DE22
  • Payment:

    TT/LC
  • Product origin:

    China
  • Lead Time:

    35days

When it comes to reliable and efficient power generation, the Deutz 20kVA generator stands out as a top choice. With its exceptional performance and durable construction, this generator is designed to meet the power needs of various applications. Whether it's for backup power in commercial buildings, construction sites, or remote locations, the Deutz 20kVA generator delivers dependable electricity whenever and wherever it's required.



The key features of the Deutz 20kVA generator make it an ideal solution for power generation:



Robust and Efficient: Powered by a high-quality Deutz diesel engine, this generator offers exceptional performance and fuel efficiency. The four-cylinder, four-stroke, water-cooled diesel engine is designed to provide reliable power for extended periods, ensuring uninterrupted operation.



Reliable Power Output: The generator delivers a three-phase power output, making it suitable for a wide range of applications with varying power requirements. With a power capacity of 20kVA, it can handle the demands of both small and medium-sized operations.



Advanced Voltage Regulation: Equipped with an Automatic Voltage Regulator (AVR), the generator ensures a stable and consistent power supply. The AVR technology eliminates voltage fluctuations, protecting sensitive equipment and ensuring the efficient operation of connected devices.



Easy Start and Control: The Deutz 20kVA generator features a 24-volt electric starter system, enabling quick and effortless engine startup. Additionally, it is equipped with a user-friendly control panel that provides convenient access to essential monitoring and control functions.



Enhanced Safety Features: Safety is a top priority, and this generator comes with multiple safety mechanisms. It includes low oil pressure shutdown, low fuel cut-out protection, and low water cut-out engine protection systems. These features help safeguard the generator and prevent any potential damage.



Quiet Operation: The generator is designed with an enclosed structure that minimizes noise levels during operation. This makes it suitable for noise-sensitive environments, allowing for more comfortable working conditions.



Easy Maintenance: With accessibility in mind, the generator is designed for easy maintenance. It incorporates dual access doors that provide hassle-free access to internal components, facilitating routine inspections and servicing.



Durable Construction: The generator is built with high-grade materials and features a weatherproof and corrosion-resistant enclosure. The robust construction ensures long-lasting performance even in harsh environmental conditions.



The Deutz 20kVA generator is a reliable and efficient power solution that meets the demands of diverse applications. With its advanced features, durability, and ease of use, it provides peace of mind and consistent power supply whenever it's needed. Trust the Deutz 20kVA generator to deliver reliable performance, ensuring uninterrupted operations in any setting.



deutz 20kva generator , deutz generator for sale deutz diesel generator






FAQ

Q: What's your warranty?

A: For all our products we offer one year warranty or 1000 hours which comes first.



Q: What's your delivery time?

A: Standard product 20 days - 35 days. Customized product 40 days.



Q: Can we add our logo to products?

A: Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.



Q: Can we customize the product?

A: We have a very experienced technical team, we can customize any product according to your requirements, such as synchronization system, wet exhaust system, ultra-silent system



Q: What certifications are for your gen sets?



A: ISO9001-2008, ISO14001-2004, CE, SASO, SONCAP, RETIE, etc.

Model Standby Power  Prime Power Engine Model Dimension Weight Datasheet
kVA kW kVA kW LXWXH(MM) KG
A-DE22 22 18 20 16 BFM3 G1 2150×1000×1440 1050 Download
A-DE33 33 26 30 24 BFM3 G2 2150×1000×1440 1120 Download
A-DE44 44 35 40 32 BFM3T 2500×1080×1560 1280 Download
A-DE55 55 44 50 40 BFM3C 2500×1080×1560 1360 Download
A-DE83 83 53 60 48 BF4M2012 2800×1130×1600 1400 Download
A-DE87 87 66 75 60 BF4M2012C G1 2800×1130×1600 1400 Download
A-DE100 100 80 91 73 BF4M2012C G2 2800×1130×1600 1450 Download
A-DE110 110 88 100 80 BF4M1013EC G1 3200×1130×1720 1720 Download
A-DE123 123 99 112 90 BF4M1013EC G2 3200×1130×1720 1780 Download
A-DE143 143 114 130 104 BF4M1013FC 3200×1130×1720 1800 Download
A-DE176 176 140 160 128 BF6M1013EC G1 3200×1130×1720 2200 Download
A-DE198 198 158 180 144 BF6M1013EC G2 3600×1330×2190 2560 Download
A-DE207 207 165 188 150 BF6M1013FC G2 3600×1330×2190 2560 Download
A-DE220 220 176 200 160 BF6M1013FC G3 3600×1330×2190 2680 Download
A-DE275 275 220 250 200 TCD8.0 3600×1330×2190 2960 Download

A-DE250 250 200 225 180 BF6M1015C-LA GA 3988x1400x2250 3800 Download
A-DE275 275 220 250 200 BF6M1015C-LA G1A 3988x1400x2250 3840 Download
A-DE300 300 240 275 220 BF6M1015C-LA G2A 3988x1400x2250 3880 Download
A-DE350 350 280 313 250 BF6M1015C-LA G3A 3988x1400x2250 3910 Download
A-DE375 375 300 344 280 BF6M1015C-LA G4 4388*1650*2350 4150 Download
A-DE412 412 330 375 300 BF6M1015CP-LA G 4388*1650*2350 4180 Download
A-DE475 475 380 438 350 BF8M1015C-LA G1A 4588x1600x2500 4250 Download
A-DE500 500 400 450 360 BF8M1015C-LA G2 4588x1600x2500 4300 Download
A-DE550 550 440 500 400 BF8M1015CP-LA G2 4588x1600x2500 4350 Download
A-DE588 588 470 538 430 BF8M1015CP-LA G4 4588x1600x2500 4300 Download
A-DE600 600 480 575 450 BF8M1015CP-LA G5 4588x1600x2500 4400 Download
A-DE750 750 600 675 550 HCI12V132ZL-LAG2 5280x2100x2500 6250 Download
A-DE825 825 660 750 600 HCI12V132ZL-LAG2 5280x2100x2500 6310 Download

AIR COOLED
A-DE14A 14  11  13  10  F2L912 AT2008*900*1130 550 Download
A-DE28A 28  22  25  20  F3L912 AT2188*900*1280 630 Download
A-DE33A 33  26  30  24  F4L912 AT2188*900*1280 700 Download
A-DE41A 41  33  38  30  F4L913 AT2288*950*1280 830 Download
A-DE44A 44  35  40  32  F4L912T AT2288*950*1280 840 Download
A-DE55A 55  44  50  40  F6L912 AT2688*1080*1450 850 Download
A-DE63A 63 50  56  45  F6L913 AT2688*1080*1450 1020 Download
A-DE70A 70  55  63  50  F6L912T AT2688*1080*1450 1080 Download
A-DE70A 70  55  63  50  BF4L913 AT2688*1080*1450 1080 Download
A-DE103A 103  83  94  75  BF6L913ADG AT2938*1080*1690 1230 Download
A-DE132A 132  106  120  96  BF6L913CADG AT2938*1080*1690 1300 Download
A-DE138A 138  110  125  100  F8L413F AT3288*1130*1850 1520 Download
A-DE165A 165  132  150  120  BF8L513 AT3288*1130*1850 1880 Download
A-DE206A 206  165  188  150  BF8L513C AT3588*1180*2150 2300 Download

Model Standby Power  Prime Power Engine Model Dimension Weight Datasheet
kVA kW kVA kW LXWXH(MM) KG
A-DE28H 28 22 25 20 BFM3 G1 2150×1000×1440 1050 Download
A-DE39H 39 31 35 28 BFM3 G2 2150×1000×1440 1120 Download
A-DE53H 53 42 48 38 BFM3T 2500×1080×1560 1280 Download
A-DE66H 66 53 60 48 BFM3C 2500×1080×1560 1360 Download
A-DE77H 77 62 70 56 BF4M2012 2800×1130×1600 1400 Download
A-DE90H 90 72 82 66 BF4M2012C G1 2800×1130×1600 1400 Download
A-DE110H 110 88 100 80 BF4M2012C G2 2800×1130×1600 1450 Download
A-DE123H 123 99 112 90 BF4M1013EC G1 3200×1130×1720 1720 Download
A-DE138H 138 110 125 100 BF4M1013EC G2 3200×1130×1720 1780 Download
A-DE152H 152 121 138 110 BF4M1013FC 3200×1130×1720 1800 Download
A-DE185H 185 148 168 134 BF6M1013EC G1 3200×1130×1720 2200 Download
A-DE220H 220 176 200 160 BF6M1013EC G2 3600×1330×2190 2560 Download
A-D231H 231 185 210 168 BF6M1013FC G2 3600×1330×2190 2560 Download
A-DE242H 242 194 220 176 BF6M1013FC G3 3600×1330×2190 2680 Download
A-DE297H 297 238 270 216 TCD8.0 3600×1330×2190 2960 Download

A-DE275H 275 220 250 200 BF6M1015C-LA GB 3988x1400x2250 3840 Download
A-DE300H 300 240 275 220 BF6M1015C-LA G1B 3988x1400x2250 3880 Download
A-DE350H 350 280 313 250 BF6M1015C-LA G2B 3988x1400x2250 3910 Download
A-DE375H 375 300 344 280 BF6M1015C-LA G3B 3988x1400x2250 4150 Download
A-DE400H 400 320 363 290 BF6M1015CP-LA G1B 4388*1650*2350 4180 Download
A-DE425H 425 340 400 320 BF6M1015CP-LA G2B 4388*1650*2350 4250 Download
A-DE500H 500 400 450 360 BF8M1015C-LA G1B 4588x1600x2500 4300 Download
A-DE525H 525 420 475 380 BF8M1015CP-LA G1B 4588x1600x2500 4350 Download
A-DE563H 563 450 500 400 BF8M1015CP-LA G2B 4588x1600x2500 4300 Download
A-DE625H 625 500 575 450 BF8M1015CP-LA G3B 4588x1600x2500 4400 Download
A-DE750H 750 600 675 550 HC12V132ZL-LAG2B 5280x2100x2500 6250 Download
A-DE825H 825 660 750 600 HC12V132ZL-LAG2B 5280x2100x2500 6310 Download

ATS



ATS cabinet is mainly applied to the automatic switch between prime and emergency power, composing an automatic emergency power supply system together with diesel generating sets. It will monitor prime power, When it is cut off, it can automatically switch loads such as emergency illumination, security power and fire fighting equipment to generating sets. Auto start, auto transfer, auto protection, auto power supply



Standard configuration:

  • Control option switch, transfer option switch, emergency stop, buzzer, voltmeter, ammeter, meter, controller, ATS Switch, breaker.
  • Multiple input/output functions can be customized.
  • Standard Capacity: From 20A-3200A



Brand: ABB, Schneider, Socome, Suyang, AISIKAI






PARALLEL DISTRIBUTION CABINET



Parallel distribution cabinet is designed for the parallel running of main power diesel generator sets. The system can operate automatically or be controlled manually.

The system has the functions of automatic frequency detection, synchronizing detection and switch-on.

It is convenient to expand the capacity to satisfy the need of increasing load.

It can be used together with multiple generating sets (32 parallel generating sets max.) to control multiple diesel generating sets for automatic synchronization.



It offers stable frequency and voltage and can bear large-capacity load impact, achieving reliable supply, centralized management and more flexible power allocation.








Load Bank



The purpose of most land banks is used to test of the emergency generator sets, verifying all genset components are in optimal working condition under different loads. Another purpose is working combined with the generator set, to take the load of the generator set is always above 30%



 Advantages of Load Bank

  • Confirming the gensets output capabilities as opposed to just starting it up on occasion.
  • Finding problems, instead of when an emergency arises, savings costs and prevents future breakdowns.
  • Helps to avoid wet-stacking and cleans out any carbon deposits.
  • Confirms that the engine cooling system will work efficiently under load.
  • Makes sure that the Genset will work properly when needed.



Four types of load banks are usually used to genset.

  • Resistive
  • Reactive
  • Intelligence
