40kva generator price
40kva generator price

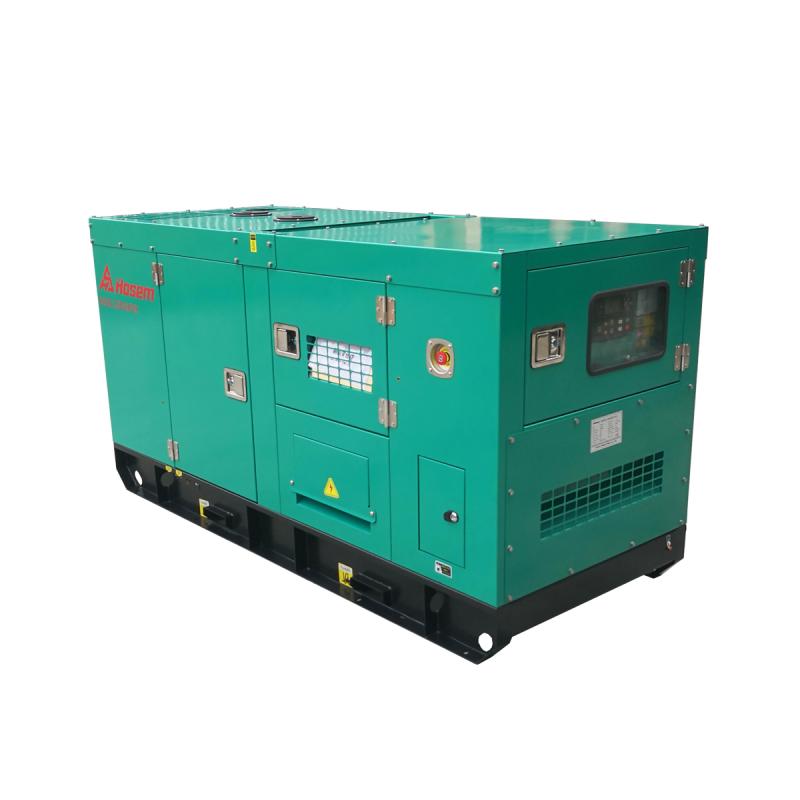

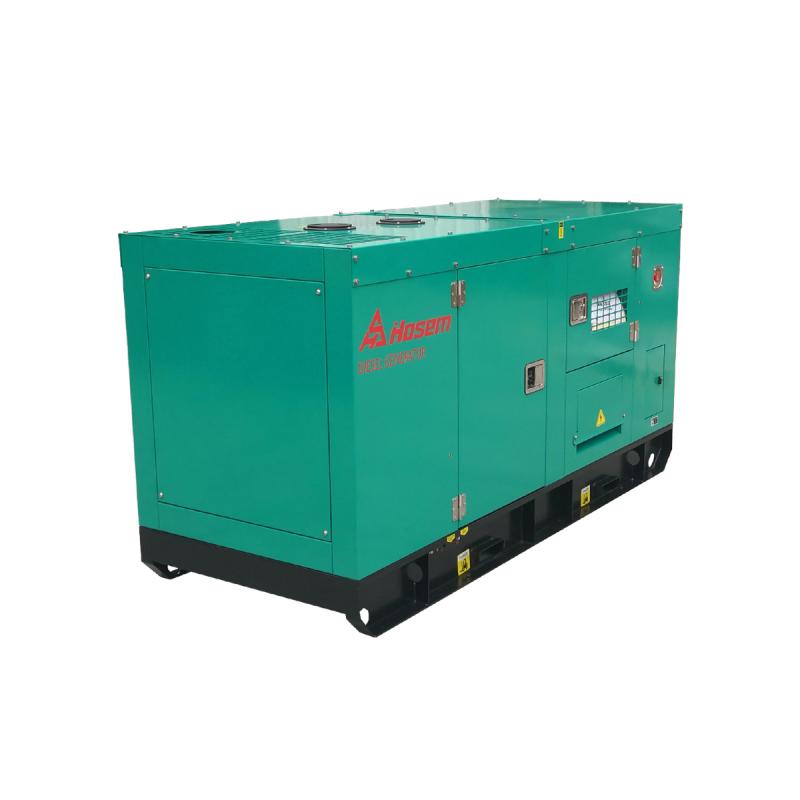

40kVA Generator Powered by Deutz

40kVA Generator Powered by Deutz



Standard Configuration:



  • Improved advanced air flow and ambient temperature design for optimal performance in both 100% prime and 110% emergency standby use.
  • Customized built-in high-performance residential muffler for minimal noise levels.
  • Top lifting points included as a standard feature for easy transportation and installation.
  • Forklift pockets and eyelets provided as standard features for additional mobility options.
  • External robust steel lockable fuel inlet with electrical fuel gauge for secure and convenient fuel management.
  • User-friendly external power outlet flap for easy access to power connections.
  • Environmental-friendly fully bunded base fuel tank to prevent oil or coolant spills on the ground.
  • Earth strap fitted on all canopy doors to ensure safety during operation.
  • Canopy designed with a holistic disassembly structure, featuring large size doors for convenient daily checks and maintenance.
  • High-quality outdoor powder coating applied to protect against rust, corrosion, and ultraviolet radiation, ensuring durability and longevity.

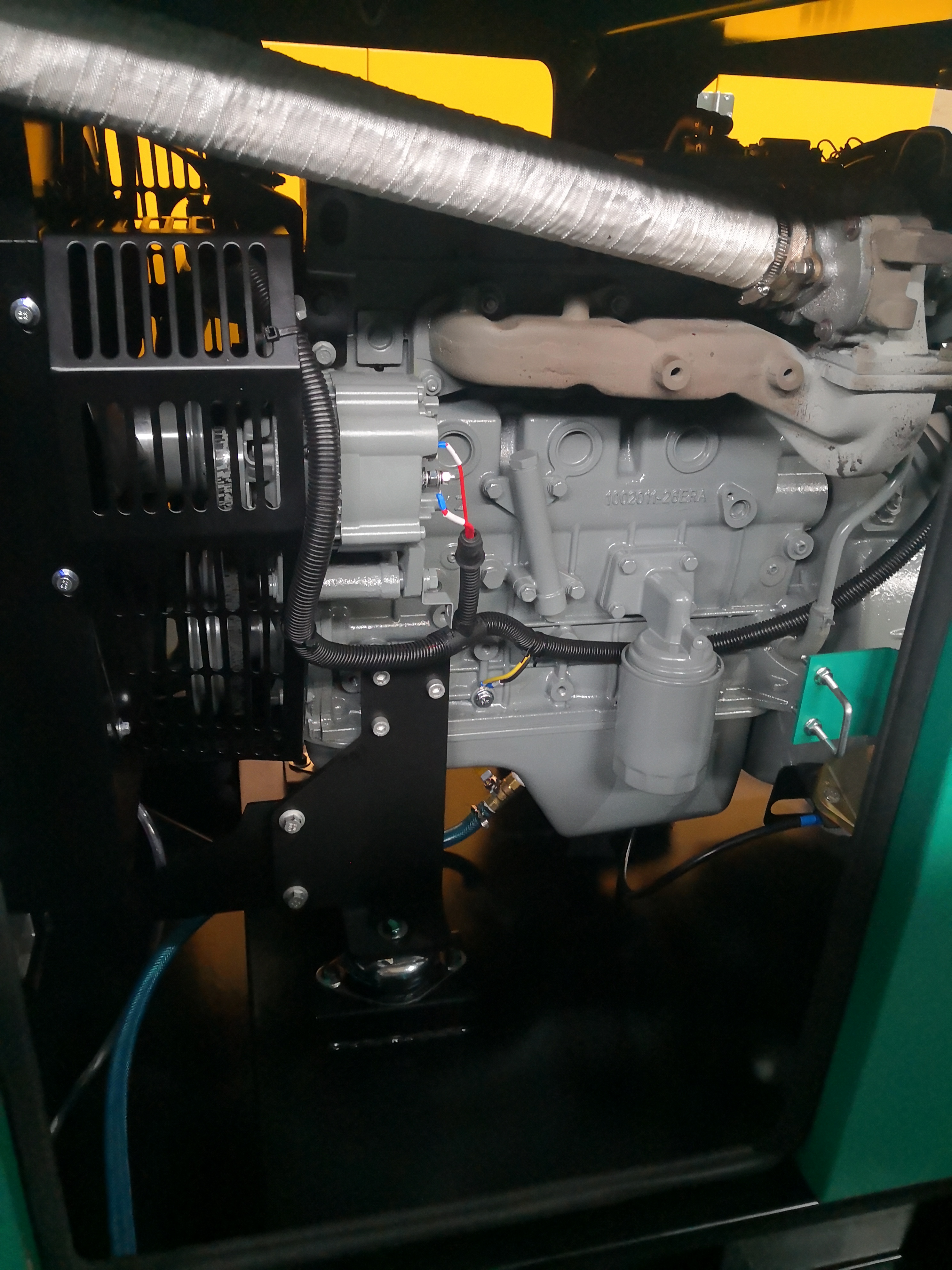

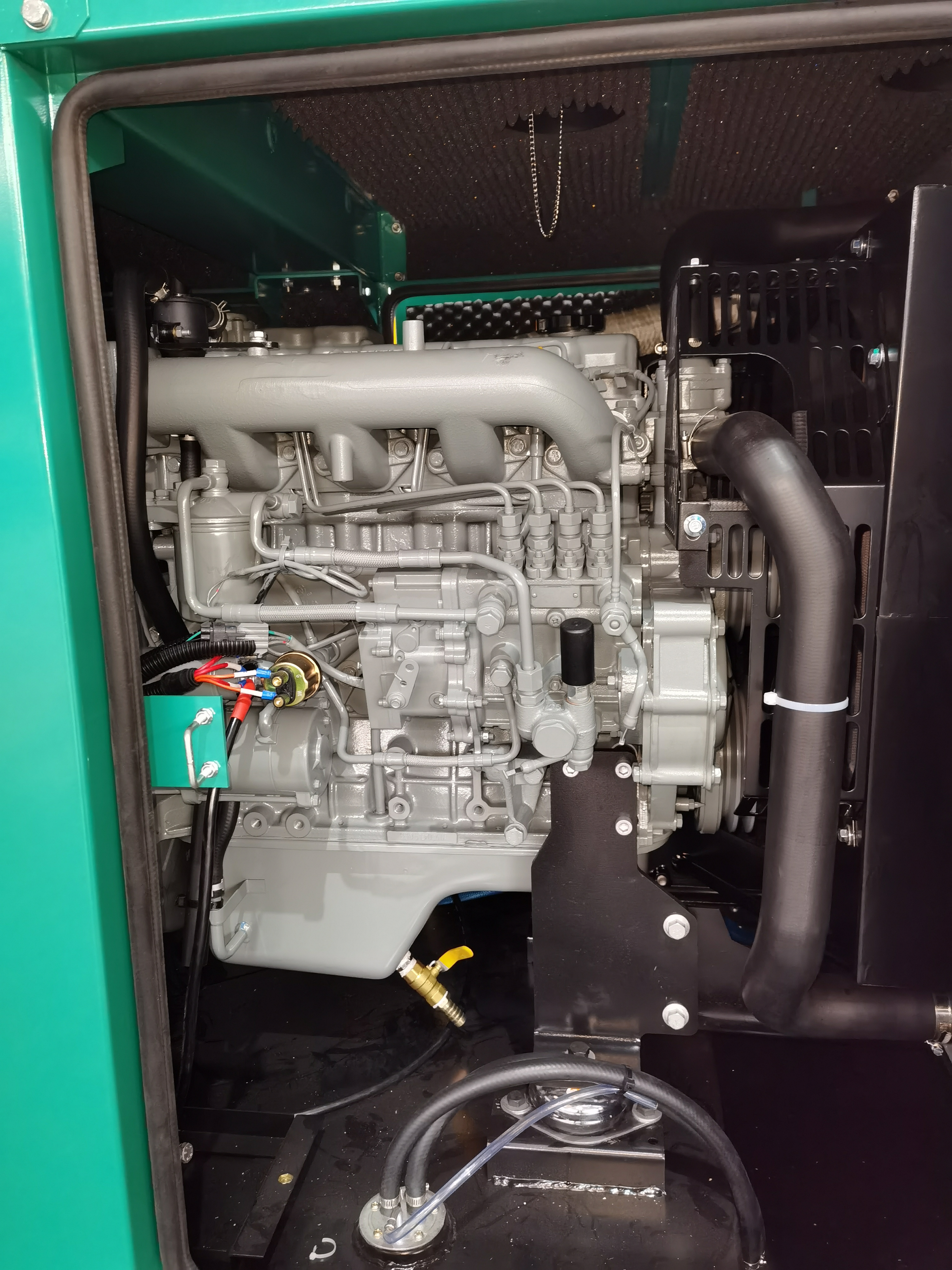

Engine Data:

Engine Specification
Engine Manufacturer Deutz (Dalian) Engine Co., Ltd.
Engine Brand Deutz
Engine Model BFM3T
No. of Cylinder 4 Cylinder in line
Aspiration Turbocharger
Governor Electric
Engine Max. Output Power kW 44
Displacement L 3.2
Compression Ratio 18.5 : 1
Starting Voltage V 12
Bore mm 98
Stroke mm 105
Lubrication Oil Capacity L 7.5
Intake Air Flow  M3/Min N.A.
Fuel Consumption at 100% Load L/H 10.3



Deutz Generator  40kVA Generator



We are reputable manufacturer specializing in professional generators, diesel generator sets, Cummins generator sets, Volvo generator sets, and more. We take pride in our advanced testing equipment, excellent production technology, professional manufacturing expertise, perfect quality management system, and strong R&D technical strength. With our comprehensive capabilities, we can fulfill a wide range of customer power needs.



Key Features of Our Generator Sets:



Diverse Specifications: We offer generator sets ranging from 1KW to 2500KW, ensuring we have options suitable for various applications and power requirements.



High Quality: Our generator sets are built to deliver reliable performance and durability. We adhere to stringent quality standards throughout the manufacturing process to ensure that our products meet or exceed customer expectations.



Energy Efficiency: We prioritize energy efficiency in our designs, allowing our generator sets to provide optimal power output while minimizing fuel consumption and operating costs.



Versatility: Our generator sets come in various configurations, including universal, automatic, with four protection features, automatic switching, low noise, and mobile options. This versatility allows us to cater to diverse customer needs and preferences.



Customizable Solutions: We understand that different customers have unique requirements. We can customize our generator sets to accommodate different voltages, frequencies, and even power supply systems with multiple units connected in parallel.



We invite you to contact us for more information or to inquire about our products. Our dedicated sales team can be reached at sale@hosempower.com. We look forward to providing you with high-quality generator solutions that meet your specific needs.



indutrial generator



FAQ

Q: How do I maintain a generator set?

A: Regular maintenance is essential for the proper functioning and longevity of a generator set. Some common maintenance tasks include checking and changing the oil and filters, inspecting and cleaning the cooling system, testing the battery, and conducting regular load bank testing. Following the manufacturer's maintenance guidelines and scheduling routine inspections by qualified technicians is recommended.



Q: Can a generator set be used in outdoor or harsh environments?

A: Yes, generator sets can be designed for outdoor or harsh environments. Weatherproof and soundproof enclosures protect the generator set from the elements and reduce noise levels. Additionally, generator sets can be equipped with features such as cold-weather packages, which include block heaters and battery warmers for reliable operation in extreme temperatures.



Q: Can this generator set be synchronized with the main power supply?

A: Yes, generator sets can be synchronized with the main power supply in certain applications. This process, known as paralleling or load sharing, involves connecting multiple generator sets to provide a combined power output that meets the load requirements. Synchronization ensures a seamless transfer of power and load sharing among the generators.



Q: Can the 40kVA generator set be remotely monitored and controlled?



A: Yes, many modern generator sets come with advanced control systems that allow remote monitoring and control. These systems enable real-time monitoring of parameters such as voltage, frequency, fuel levels, and operating conditions. Remote monitoring ensures prompt notifications of any issues and allows for remote control or adjustments, enhancing the convenience and efficiency of generator set operation.

Model Standby Power  Prime Power Engine Model Dimension Weight Datasheet
kVA kW kVA kW LXWXH(MM) KG
A-DE22 22 18 20 16 BFM3 G1 2150×1000×1440 1050 Download
A-DE33 33 26 30 24 BFM3 G2 2150×1000×1440 1120 Download
A-DE44 44 35 40 32 BFM3T 2500×1080×1560 1280 Download
A-DE55 55 44 50 40 BFM3C 2500×1080×1560 1360 Download
A-DE83 83 53 60 48 BF4M2012 2800×1130×1600 1400 Download
A-DE87 87 66 75 60 BF4M2012C G1 2800×1130×1600 1400 Download
A-DE100 100 80 91 73 BF4M2012C G2 2800×1130×1600 1450 Download
A-DE110 110 88 100 80 BF4M1013EC G1 3200×1130×1720 1720 Download
A-DE123 123 99 112 90 BF4M1013EC G2 3200×1130×1720 1780 Download
A-DE143 143 114 130 104 BF4M1013FC 3200×1130×1720 1800 Download
A-DE176 176 140 160 128 BF6M1013EC G1 3200×1130×1720 2200 Download
A-DE198 198 158 180 144 BF6M1013EC G2 3600×1330×2190 2560 Download
A-DE207 207 165 188 150 BF6M1013FC G2 3600×1330×2190 2560 Download
A-DE220 220 176 200 160 BF6M1013FC G3 3600×1330×2190 2680 Download
A-DE275 275 220 250 200 TCD8.0 3600×1330×2190 2960 Download

A-DE250 250 200 225 180 BF6M1015C-LA GA 3988x1400x2250 3800 Download
A-DE275 275 220 250 200 BF6M1015C-LA G1A 3988x1400x2250 3840 Download
A-DE300 300 240 275 220 BF6M1015C-LA G2A 3988x1400x2250 3880 Download
A-DE350 350 280 313 250 BF6M1015C-LA G3A 3988x1400x2250 3910 Download
A-DE375 375 300 344 280 BF6M1015C-LA G4 4388*1650*2350 4150 Download
A-DE412 412 330 375 300 BF6M1015CP-LA G 4388*1650*2350 4180 Download
A-DE475 475 380 438 350 BF8M1015C-LA G1A 4588x1600x2500 4250 Download
A-DE500 500 400 450 360 BF8M1015C-LA G2 4588x1600x2500 4300 Download
A-DE550 550 440 500 400 BF8M1015CP-LA G2 4588x1600x2500 4350 Download
A-DE588 588 470 538 430 BF8M1015CP-LA G4 4588x1600x2500 4300 Download
A-DE600 600 480 575 450 BF8M1015CP-LA G5 4588x1600x2500 4400 Download
A-DE750 750 600 675 550 HCI12V132ZL-LAG2 5280x2100x2500 6250 Download
A-DE825 825 660 750 600 HCI12V132ZL-LAG2 5280x2100x2500 6310 Download

AIR COOLED
A-DE14A 14  11  13  10  F2L912 AT2008*900*1130 550 Download
A-DE28A 28  22  25  20  F3L912 AT2188*900*1280 630 Download
A-DE33A 33  26  30  24  F4L912 AT2188*900*1280 700 Download
A-DE41A 41  33  38  30  F4L913 AT2288*950*1280 830 Download
A-DE44A 44  35  40  32  F4L912T AT2288*950*1280 840 Download
A-DE55A 55  44  50  40  F6L912 AT2688*1080*1450 850 Download
A-DE63A 63 50  56  45  F6L913 AT2688*1080*1450 1020 Download
A-DE70A 70  55  63  50  F6L912T AT2688*1080*1450 1080 Download
A-DE70A 70  55  63  50  BF4L913 AT2688*1080*1450 1080 Download
A-DE103A 103  83  94  75  BF6L913ADG AT2938*1080*1690 1230 Download
A-DE132A 132  106  120  96  BF6L913CADG AT2938*1080*1690 1300 Download
A-DE138A 138  110  125  100  F8L413F AT3288*1130*1850 1520 Download
A-DE165A 165  132  150  120  BF8L513 AT3288*1130*1850 1880 Download
A-DE206A 206  165  188  150  BF8L513C AT3588*1180*2150 2300 Download

Model Standby Power  Prime Power Engine Model Dimension Weight Datasheet
kVA kW kVA kW LXWXH(MM) KG
A-DE28H 28 22 25 20 BFM3 G1 2150×1000×1440 1050 Download
A-DE39H 39 31 35 28 BFM3 G2 2150×1000×1440 1120 Download
A-DE53H 53 42 48 38 BFM3T 2500×1080×1560 1280 Download
A-DE66H 66 53 60 48 BFM3C 2500×1080×1560 1360 Download
A-DE77H 77 62 70 56 BF4M2012 2800×1130×1600 1400 Download
A-DE90H 90 72 82 66 BF4M2012C G1 2800×1130×1600 1400 Download
A-DE110H 110 88 100 80 BF4M2012C G2 2800×1130×1600 1450 Download
A-DE123H 123 99 112 90 BF4M1013EC G1 3200×1130×1720 1720 Download
A-DE138H 138 110 125 100 BF4M1013EC G2 3200×1130×1720 1780 Download
A-DE152H 152 121 138 110 BF4M1013FC 3200×1130×1720 1800 Download
A-DE185H 185 148 168 134 BF6M1013EC G1 3200×1130×1720 2200 Download
A-DE220H 220 176 200 160 BF6M1013EC G2 3600×1330×2190 2560 Download
A-D231H 231 185 210 168 BF6M1013FC G2 3600×1330×2190 2560 Download
A-DE242H 242 194 220 176 BF6M1013FC G3 3600×1330×2190 2680 Download
A-DE297H 297 238 270 216 TCD8.0 3600×1330×2190 2960 Download

A-DE275H 275 220 250 200 BF6M1015C-LA GB 3988x1400x2250 3840 Download
A-DE300H 300 240 275 220 BF6M1015C-LA G1B 3988x1400x2250 3880 Download
A-DE350H 350 280 313 250 BF6M1015C-LA G2B 3988x1400x2250 3910 Download
A-DE375H 375 300 344 280 BF6M1015C-LA G3B 3988x1400x2250 4150 Download
A-DE400H 400 320 363 290 BF6M1015CP-LA G1B 4388*1650*2350 4180 Download
A-DE425H 425 340 400 320 BF6M1015CP-LA G2B 4388*1650*2350 4250 Download
A-DE500H 500 400 450 360 BF8M1015C-LA G1B 4588x1600x2500 4300 Download
A-DE525H 525 420 475 380 BF8M1015CP-LA G1B 4588x1600x2500 4350 Download
A-DE563H 563 450 500 400 BF8M1015CP-LA G2B 4588x1600x2500 4300 Download
A-DE625H 625 500 575 450 BF8M1015CP-LA G3B 4588x1600x2500 4400 Download
A-DE750H 750 600 675 550 HC12V132ZL-LAG2B 5280x2100x2500 6250 Download
A-DE825H 825 660 750 600 HC12V132ZL-LAG2B 5280x2100x2500 6310 Download

ATS



ATS cabinet is mainly applied to the automatic switch between prime and emergency power, composing an automatic emergency power supply system together with diesel generating sets. It will monitor prime power, When it is cut off, it can automatically switch loads such as emergency illumination, security power and fire fighting equipment to generating sets. Auto start, auto transfer, auto protection, auto power supply



Standard configuration:

  • Control option switch, transfer option switch, emergency stop, buzzer, voltmeter, ammeter, meter, controller, ATS Switch, breaker.
  • Multiple input/output functions can be customized.
  • Standard Capacity: From 20A-3200A



Brand: ABB, Schneider, Socome, Suyang, AISIKAI






PARALLEL DISTRIBUTION CABINET



Parallel distribution cabinet is designed for the parallel running of main power diesel generator sets. The system can operate automatically or be controlled manually.

The system has the functions of automatic frequency detection, synchronizing detection and switch-on.

It is convenient to expand the capacity to satisfy the need of increasing load.

It can be used together with multiple generating sets (32 parallel generating sets max.) to control multiple diesel generating sets for automatic synchronization.



It offers stable frequency and voltage and can bear large-capacity load impact, achieving reliable supply, centralized management and more flexible power allocation.








Load Bank



The purpose of most land banks is used to test of the emergency generator sets, verifying all genset components are in optimal working condition under different loads. Another purpose is working combined with the generator set, to take the load of the generator set is always above 30%



 Advantages of Load Bank

  • Confirming the gensets output capabilities as opposed to just starting it up on occasion.
  • Finding problems, instead of when an emergency arises, savings costs and prevents future breakdowns.
  • Helps to avoid wet-stacking and cleans out any carbon deposits.
  • Confirms that the engine cooling system will work efficiently under load.
  • Makes sure that the Genset will work properly when needed.



Four types of load banks are usually used to genset.

  • Resistive
  • Reactive
  • Intelligence
