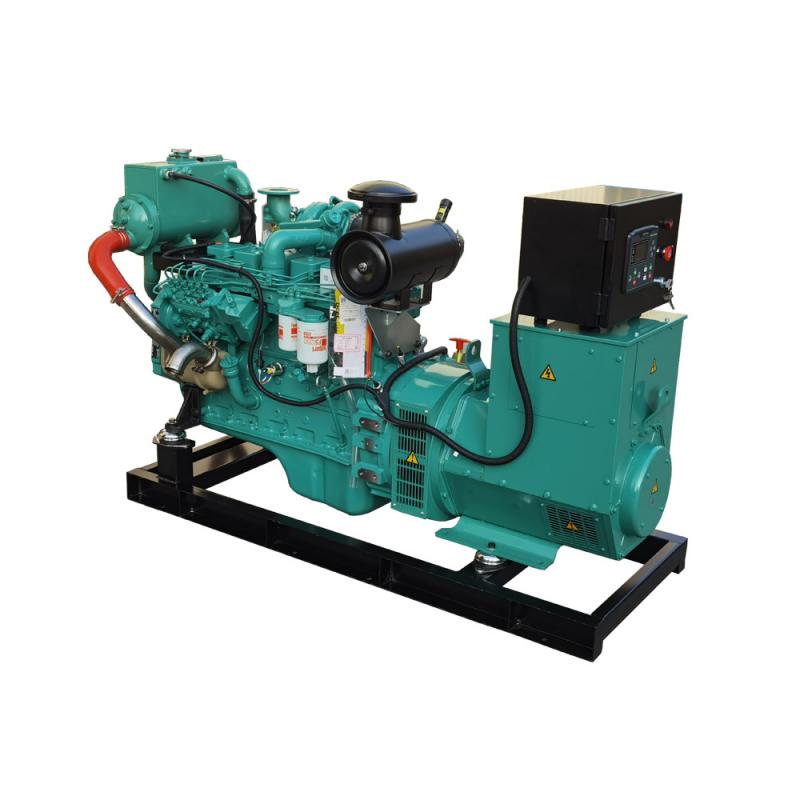

Hosem marine boat generator, powered by a Cummins engine. Built to withstand the rigors of marine environments, our generators provide consistent power for your vessel's electrical systems.
Generator Data Sheet
Generator Set Specification | ||
Model | A-C113M | |
Rate Power | kVA | 113 |
kW | 90 | |
Frequency | Hz | 50 |
Rate Voltage | V | 220/380 |
Rate Current | A | 170 |
Dimension Open-type | mm | 1950X000X1400 |
Weight For Open-type Genset | kg | 980 |
Engine Specification | ||
Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. | |
Engine Brand | Cummins | |
Engine Model | 6BTA5.9G2 | |
No. of Cylinder | 6 Cylinder inline | |
Aspiration | Turbocharged | |
Governor | Electrinic | |
Engine Max. Output Power | kW | 117 |
Displacement | L | 5.9 |
Starting Voltage | V | 24 |
Bore | mm | 102 |
Stroke | mm | 120 |
Lubrication Oil Capacity | L | 16.4 |
Model | Standby Power | Prime Power | Engine Model | Dimension (Open Type) | Weight | Datasheet | ||
kVA | kW | kVA | kW | LXWXH(MM) | KG | |||
A-C28M | - | - | 25 | 20 | 4B3.9-G2 | 1410x700x1150 | 550 | Download |
A-C41M | - | - | 38 | 30 | 4BT3.9-G2 | 1410x700x1150 | 650 | Download |
A-C50M | - | - | 50 | 40 | 4BTA3.9-GM47 | 1670x850x1270 | 800 | Download |
A-C63M | - | - | 62.5 | 50 | 6BT5.9-GM83 | 1900x900x1300 | 1000 | Download |
A-C80M | - | - | 80 | 64 | 6BT5.9-GM83 | 1900x900x1300 | 1100 | Download |
A-C594M | - | - | 94 | 75 | 6BTA5.9-GM100 | 1900x900x1300 | 1250 | Download |
A-C113M | - | - | 113 | 90 | 6BTA5.9-GM100 | 2020x900x1300 | 1300 | Download |
A-C125M | - | - | 125 | 100 | 6CT8.3-GM115 | 2080x900x1360 | 1650 | Download |
A-C150M | - | - | 150 | 120 | 6CT8.3-GM115 | 2120x900x1360 | 1700 | Download |
A-C188M | - | - | 188 | 150 | 6CTA8.3-GM155 | 2220x1000x1790 | 1720 | Download |
A-C200M | - | - | 200 | 160 | 6LTAA8.9-GM200 | 2250x1000x1790 | 1750 | Download |
A-C250M | - | - | 250 | 200 | N855-DM | 2760x1000x1790 | 2700 | Download |
A-C313M | - | - | 313 | 250 | N855-DM | 2760x1000x1790 | 2800 | Download |
A-C350M | - | - | 350 | 280 | N855-DM | 2998x1000x1790 | 2950 | Download |
A-C375M | - | - | 375 | 300 | K19-DM | 2998x1000x1790 | 3360 | Download |
A-C438M | - | - | 438 | 350 | K19-DM | 3170x1000x1920 | 3480 | Download |
A-C500M | - | - | 500 | 400 | K19-DM | 3170x1000x1920 | 3650 | Download |
A-C850M | - | - | 850 | 680 | K38-DM | 4050x1500x2480 | 7200 | Download |
A-C1000M | - | - | 1000 | 800 | K38-DM | 4100x1500x2480 | 7350 | Download |
A-C1250M | 1250 | 1000 | K50-DM | 4500x1500x2480 | 9500 | Download |
Model | Standby Power | Prime Power | Engine Model | Dimension (Open Type) | Weight | Datasheet | ||
kVA | kW | kVA | kW | LXWXH(MM) | KG | |||
A-C31MH | - | - | 31 | 25 | 4B3.9-G2 | 1410x700x1150 | 550 | Download |
A-C44MH | - | - | 44 | 35 | 4BT3.9-G2 | 1410x700x1150 | 650 | Download |
A-C50MH | - | - | 50 | 40 | 4BTA3.9-GM65 | 1670x850x1270 | 700 | Download |
A-C63MH | - | - | 63 | 50 | 4BTA5.9-GM65 | 1760x900x1300 | 720 | Download |
A-C80MH | - | - | 80 | 64 | 6BT5.9-GM100 | 2020x900x1300 | 950 | Download |
A-C94MH | - | - | 94 | 75 | 6BT5.9-GM100 | 1980x900x1300 | 980 | Download |
A-C113MH | - | - | 113 | 90 | 6BTA5.9-GM120 | 1980x900x1300 | 1000 | Download |
A-C125MH | - | - | 125 | 100 | 6BTA5.9-GM120 | 2100x810x1360 | 1080 | Download |
A-C150MH | - | - | 150 | 120 | 6CTA8.3-GM175 | 2120x900x1360 | 1350 | Download |
A-C188MH | - | - | 188 | 150 | 6CTA8.3-GM175 | 2180x900x1360 | 1420 | Download |
A-C313MH | - | - | 313 | 250 | N855-DM | 2880x1000x1790 | 2560 | Download |
A-C350MH | - | - | 350 | 280 | N855-DM | 2880x1000x1790 | 2650 | Download |
A-C438MH | - | - | 438 | 350 | K19-DM | 3360x1000x1920 | 3350 | Download |
A-C500MH | - | - | 500 | 400 | K19-DM | 3360x1000x1920 | 3400 | Download |
A-C563MH | - | - | 563 | 450 | K19-DM | 3360x1000x1920 | 3520 | Download |
A-C875MH | - | - | 875 | 700 | K38-DM | 3760x1500x2480 | 6950 | Download |
A-C1000MH | - | - | 1000 | 800 | K38-DM | 3760x1500x2480 | 7100 | Download |
A-C1438MH | - | - | 1438 | 1150 | K50-DM | 4500x1500x2480 | 9200 | Download |
