Engaging in Generator More Than 15 Years
Products
diesel marine generator wet exhaust
diesel marine generator wet exhaust

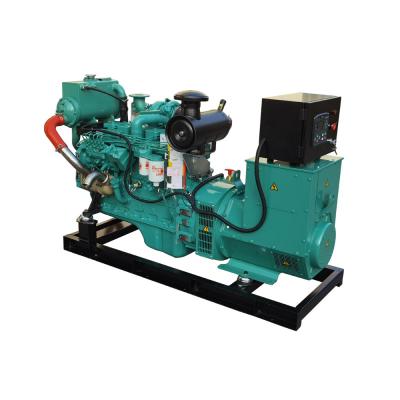

Wet Exhaust Cummins Marine Diesel Generator

Cummins Marine Generator Set with Wet Exhaust System

1. Power Range: 20kW to 50kW

2. Generator Frequence: 50Hz/60Hz

3. Phase: 3Phase or 1Phase

4. Power Factor: 0.8 lagging

5. Warranty Period: 1000hours or 1 year

6. Delivery time: 35 days

Our Standard Cummins marine generator set, composed of a Cummins engine,  Stamford technologies brushless alternator and integrated control module, power for 20kW to 1000kW, marine generator with outstanding features of high efficiency, low vibration, and low fuel consumption.



Specifications:

1. Marine Generating Set having a continuous rated “Prime” power output, 3 phase, at 0.8PF, with a capability for 10% overload in accordance with ISO8528 standard

2. Powered by a Cummins Engine with heat exchanger auxiliary and rated for continuous operation in accordance with ISO 3046.

3. Heat exchanger cooling complete with cupro-nickel tube bundle, with fresh and sea water pumps. Water-cooled exhaust manifold with dry outlet and exhaust connection/elbow and flanged flexible bellows section.

4. Integrated control module. Real-time monitoring of oil pressure, coolant temperature, engine speed, lubricating oil, coolant temperature, etc. The Control panel includes stop/start key switch, indicator for fault and power on, and an emergency stop bottom. Provision for connection of remote control panel.

5. Rubricating oil cooler pump and sump drain pump

6. Marine Standard AC Alternator, rated to ISO standard, Ventilated drip-proof enclosure with IP23 protection. The alternator is self-regulating and self excited and is complete with terminal box and automatic voltage regulator



Marine Generator Cummins Wet Exchaust



Options and Accessories

1. 24 Volt Lead-acid battery (2 blocks) with links and battery cables mounted in tray on base plate.

2.  Anti-condensation heater in the alternator

3. Jacket water heater

4. Parallel Panel: Coordinate and control the operation of multiple generator sets

5. Automatic control panel for remote control



Engine Data of 30kW Cummins Marine Generator

Engine Manufacturer Dongfeng Cummins Engine Co., Ltd.
Engine Brand Cummins
Engine Model 4BT3.9G2
No. of Cylinder 4 Cylinder in line
Aspiration Turbocharged
Governor Electric
Engine Max. Output Power kW 40
Displacement L 3.9
Compression Ratio 17.3 : 1
Starting Voltage V 24
Bore mm 102
Stroke mm 120
Lubrication Oil Capacity L 11
Intake Air Flow L/S 43.6
Fuel Consumption at 100% Load L/H 9.3



About Us



 1. Hosem Power engaged in the generator area for 15 years, we have rich experience in R&D and manufacturing generator sets.

 2. Every generator will be tested strictly before shipment, including:

  • 1) Parts faults testing
  • 2) Fuel tank pressure testing
  • 3) Bolt tightening torque testing
  • 4) Painting thickness testing
  • 5) Voltage bearing and insulation testing
  • 6) Noise testing
  • 7) Loading Testing: 25%, 50%, 75%, 100%, 110% load to check verify that all control systems, alarm and shut-down protection.

 3. production is submitted to ISO8528 and CE certification, and quality is certified by ISO9001 Management System to guarantee high-quality products and service.



FAQ

Q: What's your warranty?

A: All our products we offer one year warranty or 1000 hours which comes first.



Q: What's your delivery time?

A: Standard product 20 days - 35 days. Customized product 40 days.



Q: Can we add our logo to products?

A: Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.



Q: Can we customize the product?

A: We have a very experienced technical team, we can customize any product according to your requirements, such as synchronization system, wet exhaust system, ultra-silent system

Model Standby Power  Prime Power Engine Model Dimension (Open Type) Weight Datasheet
kVA kW kVA kW LXWXH(MM) KG
A-C25M - - 25 20 4B3.9-G2 1410x700x1150 550 Download
A-C38M - - 38 30 4BT3.9-G2 1410x700x1150 650 Download
A-C50M - - 50 40 4BTA3.9-GM47 1670x850x1270 800 Download
A-C63M - - 62.5 50 6BT5.9-GM83 1900x900x1300 1000 Download
A-C80M - - 80 64 6BT5.9-GM83 1900x900x1300 1100 Download
A-C594M - - 94 75 6BTA5.9-GM100 1900x900x1300 1250 Download
A-C113M - - 113 90 6BTA5.9-GM100 2020x900x1300 1300 Download
A-C125M - - 125 100 6CT8.3-GM115 2080x900x1360 1650 Download
A-C150M - - 150 120 6CT8.3-GM115 2120x900x1360 1700 Download
A-C188M - - 188 150 6CTA8.3-GM155 2220x1000x1790 1720 Download
A-C200M - - 200 160 6LTAA8.9-GM200 2250x1000x1790 1750 Download
A-C250M - - 250 200 N855-DM 2760x1000x1790 2700 Download
A-C313M - - 313 250 N855-DM 2760x1000x1790 2800 Download
A-C350M - - 350 280 N855-DM 2998x1000x1790 2950 Download
A-C375M - - 375 300 K19-DM 2998x1000x1790 3360 Download
A-C438M - - 438 350 K19-DM 3170x1000x1920 3480 Download
A-C500M - - 500 400 K19-DM 3170x1000x1920 3650 Download
A-C850M - - 850 680 K38-DM 4050x1500x2480 7200 Download
A-C1000M - - 1000 800 K38-DM 4100x1500x2480 7350 Download
A-C1250M     1250 1000 K50-DM 4500x1500x2480 9500 Download



Model Standby Power  Prime Power Engine Model Dimension (Open Type) Weight Datasheet
kVA kW kVA kW LXWXH(MM) KG
A-C31MH - - 31 25 4B3.9-G2 1410x700x1150 550 Download
A-C44MH - - 44 35 4BT3.9-G2 1410x700x1150 650 Download
A-C50MH - - 50 40 4BTA3.9-GM65 1670x850x1270 700 Download
A-C63MH - - 63 50 4BTA5.9-GM65 1760x900x1300 720 Download
A-C80MH - - 80 64 6BT5.9-GM100 2020x900x1300 950 Download
A-C94MH - - 94 75 6BT5.9-GM100 1980x900x1300 980 Download
A-C113MH - - 113 90 6BTA5.9-GM120 1980x900x1300 1000 Download
A-C125MH - - 125 100 6BTA5.9-GM120 2100x810x1360 1080 Download
A-C150MH - - 150 120 6CTA8.3-GM175 2120x900x1360 1350 Download
A-C188MH - - 188 150 6CTA8.3-GM175 2180x900x1360 1420 Download
A-C313MH - - 313 250 N855-DM 2880x1000x1790 2560 Download
A-C350MH - - 350 280 N855-DM 2880x1000x1790 2650 Download
A-C438MH - - 438 350 K19-DM 3360x1000x1920 3350 Download
A-C500MH - - 500 400 K19-DM 3360x1000x1920 3400 Download
A-C563MH - - 563 450 K19-DM 3360x1000x1920 3520 Download
A-C875MH - - 875 700 K38-DM 3760x1500x2480 6950 Download
A-C1000MH - - 1000 800 K38-DM 3760x1500x2480 7100 Download
A-C1438MH - - 1438 1150 K50-DM 4500x1500x2480 9200 Download

PARALLEL DISTRIBUTION CABINET



Parallel distribution cabinet is designed for the parallel running of main power diesel generator sets. The system can operate automatically or be controlled manually.

The system has the functions of automatic frequency detection, synchronizing detection and switch-on.

It is convenient to expand the capacity to satisfy the need of increasing load.

It can be used together with multiple generating sets (32 parallel generating sets max.) to control multiple diesel generating sets for automatic synchronization.



It offers stable frequency and voltage and can bear large-capacity load impact, achieving reliable supply, centralized management and more flexible power allocation.
