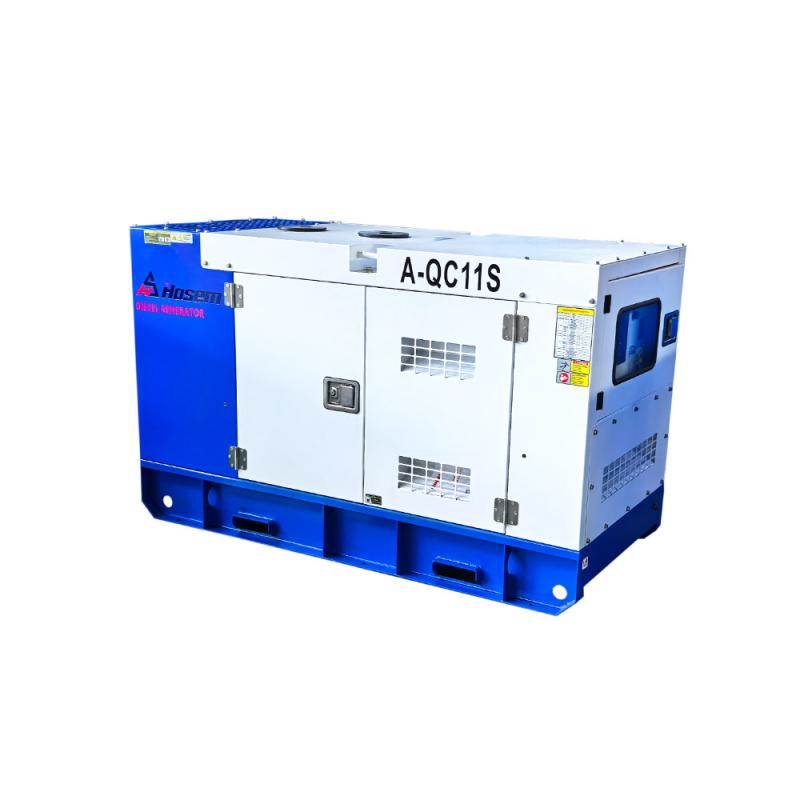

This reliable 10kVA diesel generator is powered by the QC385D engine from Quanchai, a well-known and respected Chinese brand. It is equipped with user-friendly features including an electric start system and an advanced digital controller. This combination delivers robust performance in a package that is simple and safe to operate.
Contact us today for a free, no-obligation quote.
Item no.:
A-QC11SPayment:
TT/LCPrice:
$2100/SetProduct origin:
ChinaColor:
Blue/ WhiteProduct weight:
700Lead Time:
30-35 days

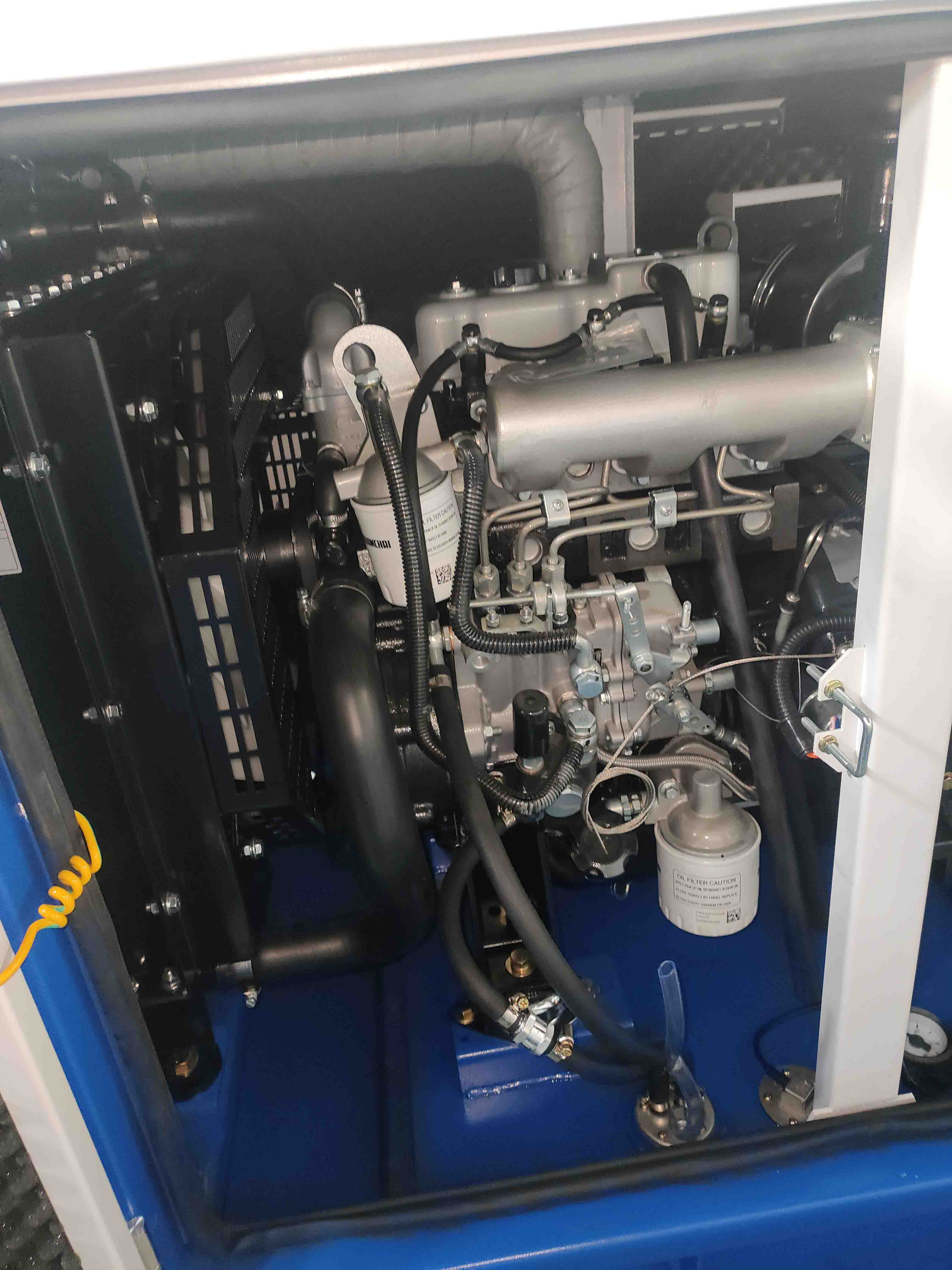

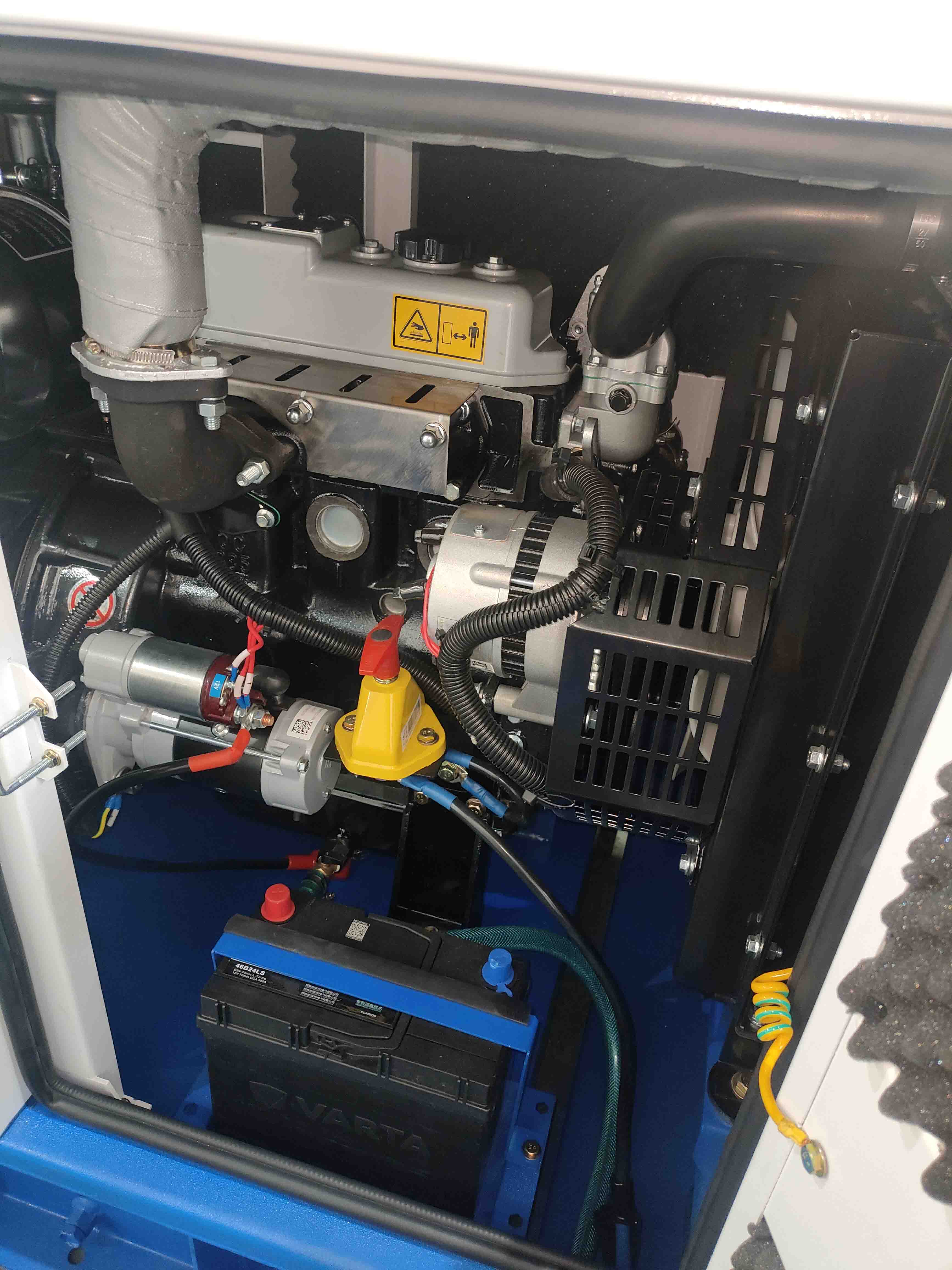

This 10kVA diesel generator is powered by the Quanchai QC385D engine. It features a direct injection combustion chamber, which ensures easy starting, low fuel consumption, and exceptional economy.
Quanchai is a best-selling diesel engine manufacturer, producing over 300,000 multi-cylinder, water-cooled engines annually. Their market-recognized quality makes them the ideal choice for primary backup power in homes, stores, and small facilities.
Compared to air-cooled engines, water-cooled systems offer superior reliability for continuous operation and a significantly longer service life. If you require a generator for continuous duty, Quanchai provides the perfect combination of proven quality and competitive pricing.
| Generator Set Specification | ||
| Model | A-QC11 | |
| Max. Power | kVA | 11 |
| kW | 9 | |
| Rate Power | kVA | 10 |
| kW | 8 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 14.4 |
| Dimension For Open-type Genset | mm | 1300 X 720 X 1050 |
| Weight For Open-type Genset | kg | 455 |
| Dimension For Soundproof Genset | mm | 1700 X 800 X 1150 |
| Weight For Soundproof Generator | kg | 750 |
| Noise Level at 7 Meters | dBA | 70 |
| Fuel Tank Capacity | Litres | 25 |
| Battery | One of 80A Free Maintenance Battery | |
| Engine Specification | ||
| Engine Manufacturer | Anhui Quanchai Engine Co., Ltd. | |
| Engine Brand | Quanchai | |
| Engine Model | QC385D | |
| No. of Cylinder | 3 Cylinder in line | |
| Aspiration | Naturally Aspirated | |
| Governor | Mechanical | |
| Engine Max. Output Power | kW | 11 |
| Displacement | L | 1.500 |
| Starting Voltage | V | 12 |
| Bore | mm | 85 |
| Stroke | mm | 90 |
| Lubrication Oil Capacity | L | 6 |
| Compression Ratio | 18 : 1 | |
| Intake Air Flow | M3/Min | 1.5 |
| Fuel Consumption at 100% Load | L | 3.4 |
Water-cooled engines offer several significant advantages, with the most critical being their superior cooling efficiency. These engines utilize a sealed internal coolant loop and a radiator to manage heat. This system is far more effective at maintaining a consistent operating temperature, especially during continuous, heavy-duty operation.
As a result, water-cooled generators provide more stable performance, greater reliability, and a longer lifespan compared to air-cooled models. For a more detailed comparison of specifications and benefits, please review the article below.
Water-Cooled or Air-Cooled Generator: Which is Better for Home Use?
A historic state-owned enterprise, Quanchai is a highly recognized brand in the Chinese market, renowned for delivering high-quality engines at affordable prices. This reputation has made Quanchai a preferred choice for demanding applications in construction, agriculture, and power generation. Their engines are robust and engineered for reliable continuous operation.
Contact us right now to have the factory-direct sale price!
| Model | Standby Power | Prime Power | Engine Model | Dimension (Silent Type) | Weight | Datasheet | ||
| kVA | kW | kVA | kW | LXWXH(MM) | KG | |||
| A-QC10 | 10 | 7.7 | 9 | 7 | QC380D | 1700 X 800 X 1150 | 750 | Download |
| A-QC11 | 11 | 8.8 | 10 | 8 | QC385D | 1700 X 800 X 1150 | 750 | Download |
| A-QC14 | 14 | 11 | 13 | 10 | QC480D | 1700 X 800 X 1150 | 800 | Download |
| A-QC17 | 17 | 13.2 | 15 | 12 | QC485D | 1700 X 800 X 1150 | 800 | Download |
| A-QC23 | 23 | 18.7 | 21 | 17 | QC490D | 1800 X 850 X 1200 | 820 | Download |
| A-QC28 | 28 | 22 | 25 | 20 | QC498D | 1800 X 850 X 1200 | 820 | Download |
| A-QC34 | 34 | 27.5 | 31 | 25 | QC4102D | 1800 X 850 X 1200 | 880 | Download |
| A-QC41 | 41 | 33 | 38 | 30 | QC4105D | 1800 X 850 X 1200 | 880 | Download |
| Model | Standby Power | Prime Power | Engine Model | Dimension (Silent Type) | Weight | Datasheet | ||
| kVA | kW | kVA | kW | LXWXH(MM) | KG | |||
| A-QC11H | 11 | 8.8 | 10 | 8 | QC385D | 1700 X 800 X 1150 | 750 | Download |
| A-QC14H | 14 | 11 | 13 | 10 | QC385D | 1700 X 800 X 1150 | 750 | Download |
| A-QC17H | 17 | 13.2 | 15 | 12 | QC480D | 1700 X 800 X 1150 | 800 | Download |
| A-QC22H | 22 | 17.6 | 20 | 16 | QC485D | 1700 X 800 X 1150 | 800 | Download |
| A-QC28H | 28 | 22 | 25 | 20 | QC490D | 1800 X 850 X 1200 | 820 | Download |
| A-QC33H | 33 | 26.4 | 30 | 24 | QC498D | 1800 X 850 X 1200 | 820 | Download |
| A-QC41H | 41 | 33 | 38 | 30 | QC4102D | 1800 X 850 X 1200 | 880 | Download |
| A-QC50H | 50 | 40 | 45 | 36 | QC4105D | 1800 X 850 X 1200 | 950 | Download |
ATS
ATS cabinet is mainly applied to the automatic switch between prime and emergency power, composing an automatic emergency power supply system together with diesel generating sets. It will monitor prime power, When it is cut off, it can automatically switch loads such as emergency illumination, security power and fire fighting equipment to generating sets. Auto start, auto transfer, auto protection, auto power supply
Standard configuration:
Brand: ABB, Schneider, Socome, Suyang, AISIKAI
PARALLEL DISTRIBUTION CABINET
Parallel distribution cabinet is designed for the parallel running of main power diesel generator sets. The system can operate automatically or be controlled manually.
The system has the functions of automatic frequency detection, synchronizing detection and switch-on.
It is convenient to expand the capacity to satisfy the need of increasing load.
It can be used together with multiple generating sets (32 parallel generating sets max.) to control multiple diesel generating sets for automatic synchronization.
It offers stable frequency and voltage and can bear large-capacity load impact, achieving reliable supply, centralized management and more flexible power allocation.
Load Bank
The purpose of most land banks is used to test of the emergency generator sets, verifying all genset components are in optimal working condition under different loads. Another purpose is working combined with the generator set, to take the load of the generator set is always above 30%
Advantages of Load Bank
Three types of load banks are usually used to genset.
