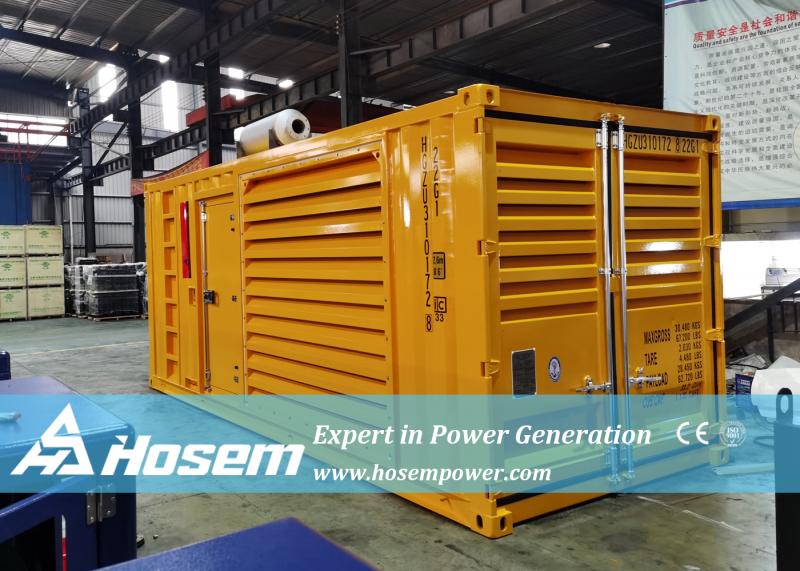

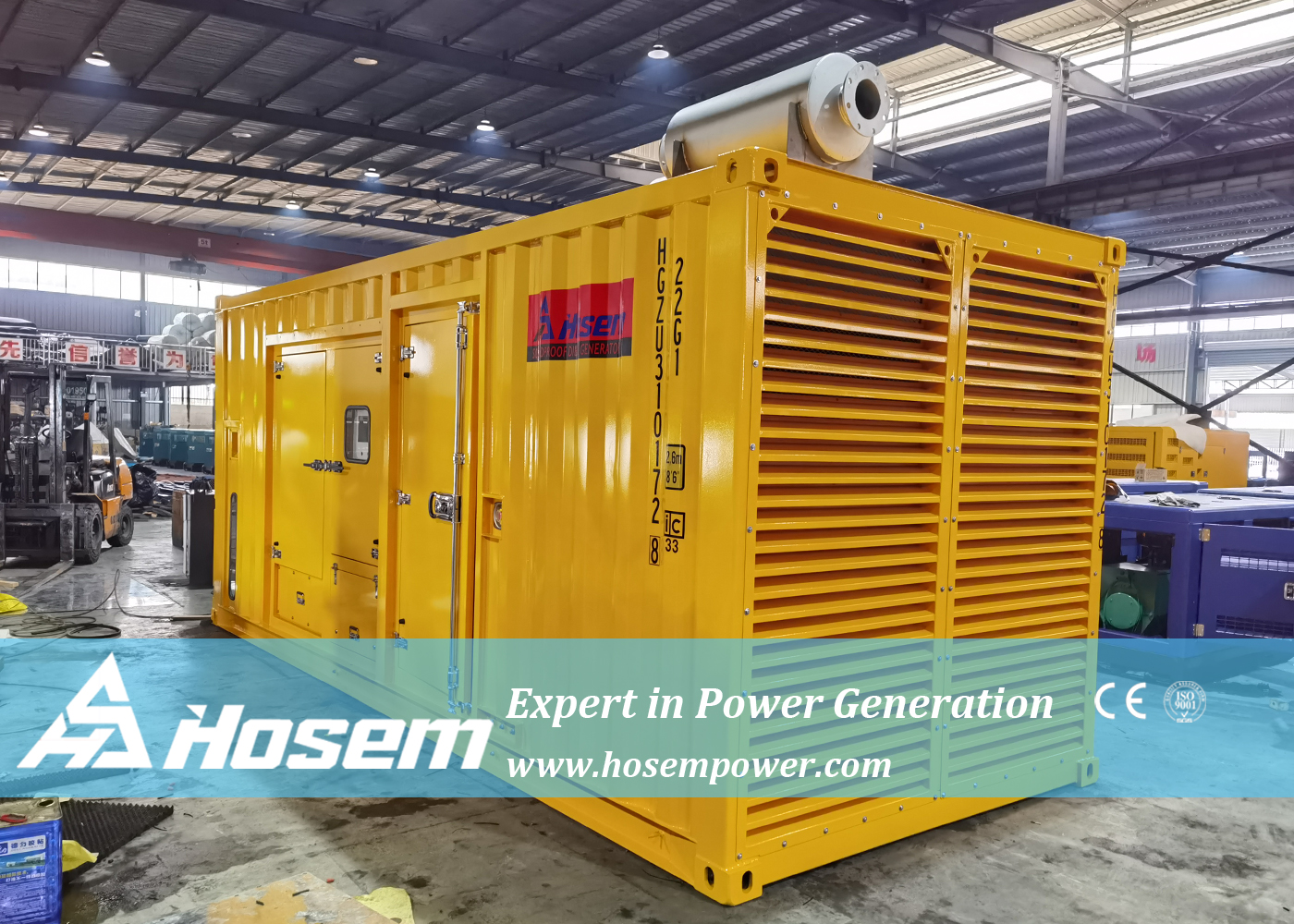

The 1000kVA Cummins generator which container is designed in accordance with ISO/TC104 standard size to ensure it is suitable for ship transportation.
Available in 20' and 40' container types.
The container type generator set is sturdy and durable, with a high degree of protection, suitable for use under bad environmental conditions.
It has a more reasonable exhaust design to ensure continuous power supply.
Equipped with a 50°C radiator with a fan for sufficient engine cooling system guarantee long time working.
Equipped with an advanced generator set control system, ATS system (optional), remote control system(optional), parallel operation system(optional), and optional control model such as Deep sea, Smartgen, and ComAp.
Compliance with all main standards, such as GB/T2820, ISO8528, IEC34, CE, standard.
Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V, etc. other voltage is optional.
Payment:
TT/LCProduct origin:
ChinaLead Time:
35days
The 1000kVA Diesel Generator, powered by Cummins engine KTA38-G5, Recognized globally for its performance undereven the most severe climatic conditions, the KTA38-Series is widely acknowledged as the one of the most robust and cost-effective diesel engine in its power range for the generator set market.
Generator Set Specification | ||
Model | A-C1100 | |
Max. Power | kVA | 1100 |
kW | 880 | |
Rate Power | kVA | 1000 |
kW | 800 | |
Frequency | Hz | 50 |
Rate Voltage | V | 400/230 |
Rate Current | A | 1443.4 |
Fuel Tank Capacity | L | 900 |
Dimension For Open-type Genset | mm | 4243 X 1820 X 2500 |
Weight For Open-type Genset | kg | 8120 |
Dimension For Soundproof Genset | mm | 6058 X 2438 X 2591 |
Weight For Soundproof Generator | kg | 10270 |
Noise Level for Soundproof Generator at 7M | dBA | 80 |
Battery | Four of 150Amps Free Maintenance Battery |
Engine Specification | ||
Engine Manufacturer | Chongqing Cummins Engine Co., Ltd. | |
Engine Brand | Cummins | |
Engine Model | KTA38-G5 | |
No. of Cylinder | 12 Cylinder V Type | |
Aspiration | Turbocharged & Aftercooled | |
Governor | Electric | |
Engine Max. Output Power | kW | 970 |
Displacement | L | 37.8 |
Compression Ratio | 13.9 : 1 | |
Starting Voltage | V | 24 |
Bore | mm | 159 |
Stroke | mm | 159 |
Lubrication Oil Capacity | L | 135 |
Intake Air Flow | L/S | 1140 |
Fuel Consumption at 100% Load | L/H | 209 |
Cummins 1000 kva Generator Specifications Download
Hosem Power in providing high-quality power solutions for a wide range of industries and applications. Our 1000kVA Cummins Containeried generator sets are designed to meet the highest standards of performance and reliability, making them an ideal choice for customers who need a dependable power source in a compact and transportable package.
The 1000kva generator powered by a Cummins KTA38-G5 diesel engine. With its advanced features and rugged construction, this generator is capable of delivering reliable power to even the most demanding applications. Whether you need a backup power source for your business or an off-grid power solution for remote locations, our 1000kva generator is an excellent choice.
Q: Are Generators Made in China Worth Purchasing?
A: Chinese generators can offer excellent quality. With China’s strong industrial capacity, the country is capable of producing high-quality products across various sectors, including cell phones, cars, and diesel generator sets. However, some suppliers cater to low-budget needs, which can affect the quality. It’s crucial to choose a reliable supplier. How can you judge a quality supplier? Check out our article:
Q: Are generator brands in the Chinese market both budget-friendly and reliable?
A: Yes, China has a strong industrial base, advanced manufacturing processes, and access to high-quality components, enabling manufacturers to produce cost-effective yet durable generators.
However, choosing the right generator depends on your specific application. Brands like Cummins, Deutz, Weichai, and SDEC are well known for their balance of affordability and reliability. If you're currently looking for a diesel generator set, feel free to contact us—we’ll provide professional guidance to help you find the best solution for your needs.
Q: Does Your Company Support OEM Services?
A: Yes, we offer OEM (Original Equipment Manufacturer) services for diesel generator sets. Whether you need customized branding, design modifications, or specific technical requirements, we can tailor our generators to meet your needs. With our in-house manufacturing capabilities and extensive industry experience, we ensure high-quality production while maintaining competitive pricing.
Why Choose Hosem Power?
1. Hosem Power engaged in the generator area for 15 years, we have rich experience in R&D and manufacturing generator sets.
2. Every generator will be tested strictly before shipment, including:
1) Parts faults testing
2) Fuel tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insulation testing
6) Noise testing
7) Loading Testing: 25%, 50%, 75%, 100%, 110% load to check verify that all control systems, alarm and shut-down protection.
3. production is submitted to ISO8528 and CE certification, and quality is certified by ISO9001 Management System to guarantee high-quality products and service.
Model | Standby Power | Prime Power | Engine Model | Dimension (Open Type) | Weight | Datasheet | ||
kVA | kW | kVA | kW | LXWXH(MM) | KG | |||
A-C22-1 | 22 | 18 | 20 | 16 | 4B3.9-G1 | 1770x830x1050 | 880 | Download |
A-C22-2 | 22 | 18 | 20 | 16 | 4B3.9-G2 | 1770x830x1050 | 880 | Download |
A-C28-1 | 28 | 22 | 25 | 20 | 4B3.9-G1 | 1770x830x1050 | 920 | Download |
A-C28-2 | 28 | 22 | 25 | 20 | 4B3.9-G2 | 1770x830x1050 | 920 | Download |
A-C44-1 | 44 | 35 | 40 | 32 | 4BT3.9-G1 | 1770x830x1050 | 950 | Download |
A-C44-2 | 44 | 35 | 40 | 32 | 4BT3.9-G2 | 1770x830x1050 | 950 | Download |
A-C55 | 50 | 40 | 55 | 50 | 4BT3.9-G2 | 1770x830x1050 | 980 | Download |
A-C60 | 60 | 50 | 55 | 45 | 4BTA3.9-G2 | 1820x830x1050 | 980 | Download |
A-C72 | 72 | 57 | 65 | 52 | 4BTA3.9-G2 | 1820x830x1050 | 1050 | Download |
A-C88 | 88 | 70 | 80 | 63 | 4BTA3.9-G11 | 1820x830x1050 | 1080 | Download |
A-C100 | 100 | 77 | 90 | 70 | QSB3.9-G3 | 1820x830x1050 | 1080 | Download |
A-C110-1 | 110 | 88 | 100 | 80 | 6BT5.9-G1 | 2180x830x1200 | 1200 | Download |
A-C110-2 | 110 | 88 | 100 | 80 | 6BT5.9-G2 | 2180x830x1200 | 1250 | Download |
A-C121 | 121 | 96 | 110 | 87 | 6BT5.9-G2 | 2180x830x1200 | 1300 | Download |
A-C138 | 138 | 110 | 125 | 100 | 6BTA5.9-G2 | 2300x830x1450 | 1330 | Download |
A-C150-1 | 150 | 119 | 136 | 109 | QSB5.9-G3 | 2300x830x1450 | 1350 | Download |
A-C150-2 | 150 | 119 | 136 | 109 | 6BTAA5.9-G2 | 2300x830x1450 | 1350 | Download |
A-C175 | 175 | 140 | 160 | 127 | 6BTAA5.9-G12 | 2300x830x1450 | 1400 | Download |
A-C203-1 | 203 | 163 | 185 | 148 | 6CTA8.3-G1 | 2654x1156x1595 | 1500 | Download |
A-C203-2 | 203 | 163 | 185 | 148 | 6CTA8.3-G2 | 2654x1156x1595 | 1500 | Download |
A-C210 | 210 | 167 | 190 | 152 | QSB6.7-G4 | 2654x1156x1595 | 1650 | Download |
A-C228 | 228 | 182 | 207 | 166 | 6CTAA8.3-G2 | 2654x1156x1595 | 1600 | Download |
A-C275-1 | 275 | 220 | 250 | 200 | MTA11-G2A | 3315x1100x1650 | 2950 | Download |
A-C275-2 | 275 | 220 | 250 | 200 | MTA11-G2 | 3315x1100x1650 | 2950 | Download |
A-C275-3 | 275 | 220 | 250 | 200 | NTA855-G1 | 3315x1100x1650 | 2950 | Download |
A-C275-4 | 275 | 220 | 250 | 200 | 6LTAA8.9-G2 | 2654x1156x1595 | 1750 | Download |
A-C286 | 286 | 229 | 260 | 208 | 6LTAA8.9-G3 | 2654x1156x1595 | 1800 | Download |
A-C290 | 290 | 232 | 260 | 208 | QSL8.9-G4 | 2654x1156x1595 | 1900 | Download |
A-C300 | 300 | 240 | 275 | 220 | NTA855-G1A | 3315x1100x1650 | 2950 | Download |
A-C312 | 312 | 250 | 284 | 227 | 6LTAA9.5-G3 | 3000x1115x1880 | 2940 | Download |
A-C344-1 | 344 | 275 | 313 | 250 | MTAA11-G3 | 3315x1100x1650 | 2950 | Download |
A-C350 | 350 | 280 | 313 | 250 | NTA855-G1B | 3315x1100x1650 | 2950 | Download |
A-C344-3 | 344 | 275 | 313 | 250 | NTA855-G2 | 3315x1100x1650 | 2950 | Download |
A-C344-4 | 344 | 275 | 313 | 250 | 6LTAA9.5-G1 | 3000x1115x1880 | 3050 | Download |
A-C378 | 378 | 302 | 343 | 275 | NTA855-G2A | 3315x1100x1650 | 3150 | Download |
A-C385 | 385 | 308 | 350 | 280 | NTA855-G4 | 3315x1100x1650 | 3150 | Download |
A-C408 | 408 | 326 | 370 | 296 | QSZ13-G6 | 3000x1115x1880 | 3200 | Download |
A-C413-1 | 413 | 330 | 375 | 300 | NTAA855-G7 | 3315x1100x1650 | 3250 | Download |
A-C413-2 | 413 | 330 | 375 | 300 | KTA19-G2 | 3580x1450x 2160 | 3250 | Download |
A-C424-1 | 424 | 340 | 385 | 310 | 6ZTAA13-G3 | 3300x970x1650 | 3450 | Download |
A-C424-2 | 424 | 340 | 385 | 310 | 6ZTAA13-G3 | 3300x970x1650 | 3450 | Download |
A-C450 | 450 | 360 | N/A | N/A | NTAA855-G7A | 3315x1100x1650 | 3500 | Download |
A-C456 | 456 | 365 | 415 | 332 | QSZ13-G7 | 3000x1115x1880 | 3500 | Download |
A-C484 | 484 | 387 | 440 | 352 | 6ZTAA13-G2 | 3300x970x1650 | 4000 | Download |
A-C495-1 | 495 | 396 | 450 | 360 | KTA19-G3 | 3580x1450x 2160 | 4000 | Download |
A-C495-2 | 495 | 396 | 450 | 360 | 6ZTAA13-G4 | 3300x970x1650 | 4000 | Download |
A-C495-3 | 495 | 396 | 450 | 360 | QSZ13-G2 | 3000x1115x1880 | 4000 | Download |
A-C511 | 511 | 409 | 465 | 372 | QSZ13-G5 | 3000x1115x1880 | 4000 | Download |
A-C550-1 | 550 | 440 | 500 | 400 | KTA19-G3A | 3580x1450x 2160 | 4200 | Download |
A-C550-2 | 550 | 440 | 500 | 400 | KTA19-G4 | 3580x1450x 2160 | 4200 | Download |
A-C560 | 560 | 448 | 510 | 408 | QSZ13-G3 | 3000x1115x1880 | 4000 | Download |
A-C575 | 575 | 462 | 525 | 420 | KTAA19-G5 | 3580x1450x 2160 | 4200 | Download |
A-C633 | 633 | 506 | 575 | 460 | KTAA19-G6 | 3580x1450x 2160 | 4800 | Download |
A-C650 | 650 | 520 | N/A | N/A | KTA19-G8 | 3580x1450x 2160 | 4800 | Download |
A-C688-1 | 688 | 550 | N/A | N/A | KTAA19-G6A | 3580x1450x 2160 | 4800 | Download |
A-C688-2 | 687 | 550 | 625 | 500 | KT38-G | 4350x1850x2400 | 7350 | Download |
A-C784 | 784 | 627 | 713 | 570 | KTA38-G1 | 4350x1850x2400 | 7650 | Download |
A-C800 | 800 | 640 | 725 | 580 | KT38-GA | 4350x1850x2400 | 7850 | Download |
A-C825 | 825 | 660 | 750 | 600 | KTA38-G2 | 4350x1850x2400 | 7850 | Download |
A-C880 | 880 | 704 | 800 | 640 | KTA38-G2B | 4350x1850x2400 | 7850 | Download |
A-C1000 | 1000 | 800 | 910 | 728 | KTA38-G2A | 4350x1850x2400 | 7850 | Download |
A-C1100 | 1100 | 880 | 1000 | 800 | KTA38-G5 | 4350x1850x2400 | 7850 | Download |
A-C1250 | 1250 | 1000 | N/A | N/A | KTA38-G9 | 4350x1850x2400 | 8150 | Download |
A-C1375 | 1375 | 1100 | 1250 | 1000 | KTA50-G3 | 5200 X 1920 X 2379 | 10800 | Download |
A-C1513 | 1513 | 1210 | 1375 | 1100 | KTA50-G8 | 5200 X 1920 X 2379 | 10800 | Download |
A-C1650 | 1650 | 1320 | 1500 | 1200 | KTA50-GS8 | 5200 X 1920 X 2379 | 10800 | Download |
Model | Standby Power | Prime Power | Engine Model | Dimension (Open Type) | Weight | Datasheet | ||
kVA | kW | kVA | kW | LXWXH(MM) | KG | |||
A-C25H | 25 | 20 | 23 | 18 | 4B3.9-G2 | 1770x830x1050 | 880 | Download |
A-C38H | 38 | 30 | 34 | 27 | 4BT3.9-G2 | 1770x830x1050 | 880 | Download |
A-C50H | 50 | 40 | 45 | 36 | 4BT3.9-G2 | 1770x830x1050 | 920 | Download |
A-C60H | 60 | 48 | 55 | 44 | 4BTA3.9-G2 | 1770x830x1050 | 920 | Download |
A-C75H | 75 | 60 | 68 | 55 | 4BTA3.9-G2 | 1770x830x1050 | 950 | Download |
A-C100H | 100 | 80 | 90 | 72 | 4BTA3.9-G11 | 1770x830x1050 | 1050 | Download |
A-C125H | 125 | 100 | 114 | 91 | 6BT5.9-G2 | 2180x830x1200 | 1200 | Download |
A-C143H | 143 | 115 | 130 | 104 | 6BTA5.9-G2 | 2180x830x1200 | 1250 | Download |
A-C165H | 165 | 132 | 150 | 120 | 6BTAA5.9-G2 | 2180x830x1200 | 1300 | Download |
A-C188H | 188 | 150 | 170 | 136 | 6BTAA5.9-G12 | 2180x830x1200 | 1350 | Download |
A-C206H | 206 | 165 | 188 | 150 | 6CTA8.3-G2 | 2654x1156x1595 | 1500 | Download |
A-C238H | 238 | 190 | 216 | 173 | 6CTAA8.3-G2 | 2654x1156x1595 | 1550 | Download |
A-C275H | 275 | 220 | N/A | N/A | NT855-GA | 3315x1100x1650 | 2500 | Download |
A-C290H | 290 | 233 | 265 | 212 | 6LTAA8.9-G2 | 2654x1156x1595 | 1750 | Download |
A-C344H | 344 | 275 | 313 | 250 | NTA855-G1 | 3315x1100x1650 | 2450 | Download |
A-C316H | 316 | 253 | 288 | 230 | 6LTAA8.9-G3 | 2654x1156x1595 | 1750 | Download |
A-C330H | 330 | 264 | 300 | 240 | 6LTAA9.5-G3 | 3000x1115x1880 | 1850 | Download |
A-C375H | 375 | 300 | 344 | 275 | NTA855-G1B | 3315x1100x1650 | 2500 | Download |
A-C375H-1 | 375 | 300 | 344 | 275 | NTA855-G2 | 3315x1100x1650 | 2550 | Download |
A-C347H | 347 | 277 | 315 | 252 | 6LTAA9.5-G1 | 3000x1115x1880 | 3650 | Download |
A-C438H | 438 | 350 | 398 | 318 | NTA855-G3 | 3315x1100x1650 | 2650 | Download |
A-C424H | 424 | 339 | 386 | 309 | 6ZTAA13-G3 | 3300x970x1650 | 3600 | Download |
A-C445H | 445 | 356 | 405 | 324 | QSZ13-G6 | 3000x1115x1880 | 4000 | Download |
A-C481H | 481 | 385 | 438 | 350 | KTA19-G2 | 3580x1450x2160 | 4000 | Download |
A-C487H | 487 | 389 | 443 | 354 | 6ZTAA13-G2 | 3300x970x1650 | 3800 | Download |
A-C500H | 500 | 400 | 455 | 364 | 6ZTAA13-G4 | 3300x970x1650 | 3800 | Download |
A-C500H-1 | 500 | 400 | 455 | 364 | QSZ13-G2 | 3000x1115x1880 | 4000 | Download |
A-C511H | 511 | 409 | 465 | 372 | QSZ13-G7 | 3000x1115x1880 | 4000 | Download |
A-C564H | 564 | 451 | 512 | 410 | KTA19-G3 | 3580x1450x 2160 | 4200 | Download |
A-C563H | 563 | 450 | 511 | 409 | QSZ13-G5 | 3000x1115x1880 | 4000 | Download |
A-C563H-1 | 563 | 450 | 511 | 409 | QSZ13-G3 | 3000x1115x1880 | 4000 | Download |
A-C618H | 618 | 495 | 562 | 450 | KTA19-G3A | 3580x1450x2160 | 4200 | Download |
A-C618H-1 | 618 | 495 | 562 | 450 | KTA19-G4 | 3580x1450x2160 | 4800 | Download |
A-C646H | 646 | 517 | 587 | 470 | KTAA19-G5 | 3580x1450x2160 | 4800 | Download |
A-C750H | 750 | 600 | N/A | N/A | KTAA19-G6A | 3580x1450x2160 | 4800 | Download |
A-C850H | 850 | 680 | 775 | 620 | KT38-G | 4350x1850x2400 | 7650 | Download |
A-C963H | 963 | 770 | 875 | 700 | KTA38-G1 | 4350x1850x2400 | 7650 | Download |
A-C997H | 997 | 798 | 906 | 725 | KTA38-G2 | 4350x1850x2400 | 7650 | Download |
A-C1031H | 1031 | 825 | 938 | 750 | KTA38-G2B | 4350x1850x2400 | 7850 | Download |
A-C1100H | 1100 | 880 | 1000 | 800 | KTA38-G2A | 4350x1850x2400 | 7850 | Download |
A-C1238H | 1238 | 990 | 1125 | 900 | KTA38-G4 | 4350x1850x2400 | 7850 | Download |
A-C1525H | 1525 | 1220 | N/A | N/A | KTA38-G9 | 4350x1850x2400 | 8150 | Download |
A-C1513H | 1513 | 1210 | 1375 | 1100 | KTA50-G3 | 5200 X 1920 X 2379 | 10800 | Download |
A-C1733H | 1733 | 1386 | 1575 | 1260 | KTA50-G9 | 5200 X 1920 X 2379 | 10800 | Download |
ATS
ATS cabinet is mainly applied to the automatic switch between prime and emergency power, composing an automatic emergency power supply system together with diesel generating sets. It will monitor prime power, When it is cut off, it can automatically switch loads such as emergency illumination, security power and fire fighting equipment to generating sets. Auto start, auto transfer, auto protection, auto power supply
Standard configuration:
Brand: ABB, Schneider, Socome, Suyang, AISIKAI
PARALLEL DISTRIBUTION CABINET
Parallel distribution cabinet is designed for the parallel running of main power diesel generator sets. The system can operate automatically or be controlled manually.
The system has the functions of automatic frequency detection, synchronizing detection and switch-on.
It is convenient to expand the capacity to satisfy the need of increasing load.
It can be used together with multiple generating sets (32 parallel generating sets max.) to control multiple diesel generating sets for automatic synchronization.
It offers stable frequency and voltage and can bear large-capacity load impact, achieving reliable supply, centralized management and more flexible power allocation.
Load Bank
The purpose of most land banks is used to test of the emergency generator sets, verifying all genset components are in optimal working condition under different loads. Another purpose is working combined with the generator set, to take the load of the generator set is always above 30%
Advantages of Load Bank
Three types of load banks are usually used to genset.
Tags :
