150kW Diesel Generator

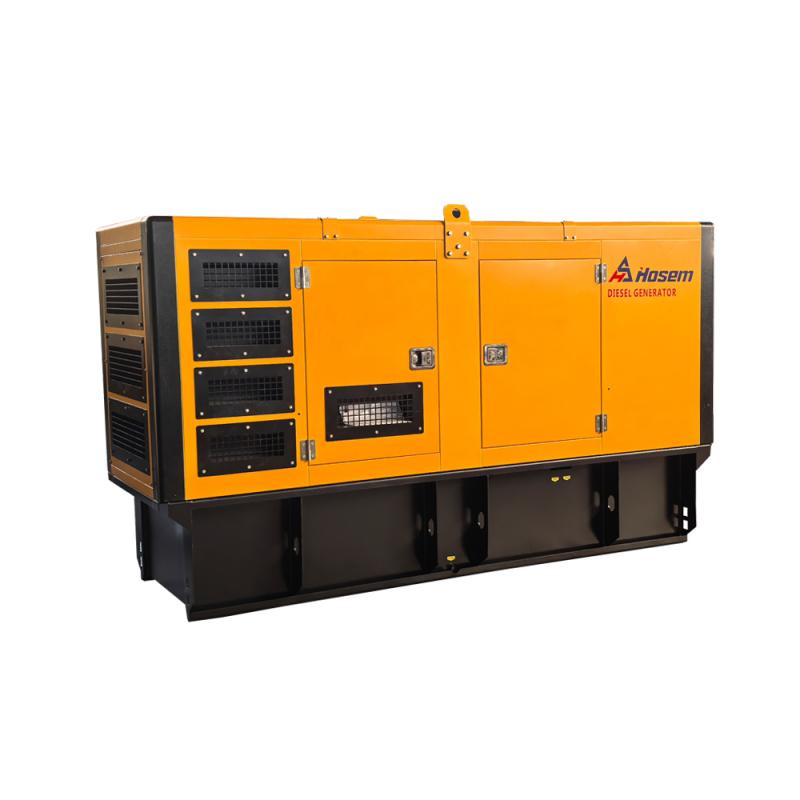

150kW Diesel Generator with 1000L Fuel Tank – 24-Hour Continuous Power

This 150kW diesel generator is engineered for uninterrupted, high-performance power delivery. Equipped with a 1000-liter base fuel tank, it provides up to 24 hours of continuous operation at full load, making it ideal for industrial sites, data centers, remote operations, and emergency backup. Built for durability and efficiency, it features a robust engine, high-quality alternator, and intelligent control panel for seamless monitoring and protection.



Contact us right now for more detail!!

150kW Diesel Generator with 1000L Fuel Tank – 24-Hour Continuous Power



This 150kW Diesel Generator powered by a Cummins 6CTA8.3-G2 engine, Designed for heavy-duty performance and equipped with a 1000L fuel tank, this generator is built to deliver 24-hour continuous power with exceptional efficiency and reliability.



Rubost Cummins Engine Powered

The heart of this generator is the renowned Cummins 6CTA8.3-G2 engine, known for its durability, high performance, and low maintenance requirements.  As long as you perform routine maintenance, the engine will hardly have any problems.



Engine Specification
Engine Manufacturer Dongfeng Cummins Engine Co., Ltd.
Engine Brand Cummins
Engine Model 6CTA8.3G2
No. of Cylinder 6 Cylinder in line
Aspiration Turbocharged & Aftercooled
Governor Electric
Engine Max. Output Power kW 179.3
Displacement L 8.3
Compression Ratio 17.3 : 1
Starting Voltage V 24
Bore mm 114
Stroke mm 135
Lubrication Oil Capacity L 20
Intake Air Flow  M3/Min 11.2
Fuel Consumption at 100% Load L/H 42

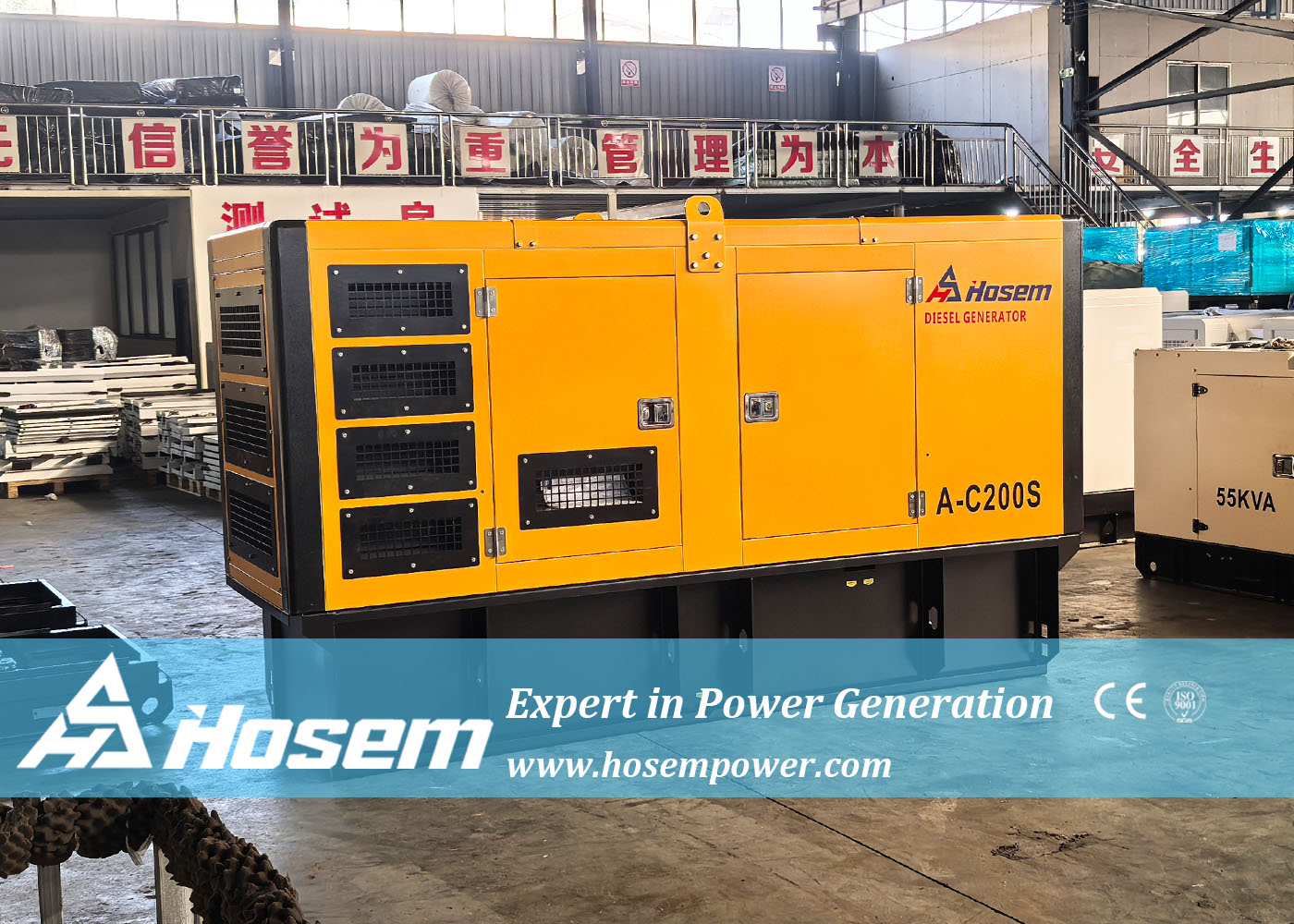

150kW Diesel Generator



1000L Fuel Tank for Extended Runtime



The integrated 1000L fuel tank allows for extended operation without frequent refueling, making it ideal for remote locations or applications where continuous power is critical.



The fuel tank is equipped with a mechanical fuel meter and an electronic fuel level meter, making it easy and convenient for users to monitor fuel levels.



Advanced Control System



The 150kW diesel generator equipped with a user-friendly control panel, the generator offers features such as automatic start/stop, real-time monitoring, and fault diagnostics.



These features ensure easy operation and quick troubleshooting, minimizing downtime.



FQA

Q: How to Import Generator Sets from China?

A: The process of importing a generator from China is simple and hassle-free. We can ship the goods directly to your designated seaport, and you only need to handle customs clearance and related procedures.



For more details, refer to my article:

"How to Import Generator Sets from China: A Comprehensive Guide for Businesses and Individuals."



Q: Chinese Made Generator is Good?

A: Yes, we can confidently say that Chinese engines are of high quality. China has a strong industrial foundation, producing everything from smartphones to automobiles, proving its ability to manufacture reliable and efficient products.



However, when purchasing from China, it's important to carefully evaluate the product and supplier, as some generators are designed for low-budget markets. To ensure you buy a high-quality Chinese generator, check out my article below:



Are Chinese Diesel Generators Good? How to Choose a High-Quality Generator from China



As a professional diesel generator manufacturer with 20 years of experience, we are committed to producing high-quality generators. Contact us today to get our best prices and exclusive offers!

Model Standby Power  Prime Power Engine Model Dimension Silent Type Weight Datasheet
kVA kW kVA kW LXWXH(MM) KG
A-C22-1 22 18 20 16 4B3.9-G1 2300x 900x1250 765 Download
A-C22-2 22 18 20 16 4B3.9-G2 2300x 900x1250 765 Download
A-C28-1 28 22 25 20 4B3.9-G1 2300x 900x1250 765 Download
A-C28-2 28 22 25 20 4B3.9-G2 2300x 900x1250 765 Download
A-C44-1 44 35 40 32 4BT3.9-G1 2300x 900x1250 770 Download
A-C44-2 44 35 40 32 4BT3.9-G2 2300x 900x1250 770 Download
A-C55 50 40 55 50 4BT3.9-G2 2300x 900x1250 780 Download
A-C60 60 50 55 45 4BTA3.9-G2 2450x900x1250 824 Download
A-C72 72 57 65 52 4BTA3.9-G2 2450x900x1250 824 Download
A-C88 88 70 80 63 4BTA3.9-G11 2450x900x1250 980 Download
A-C100 100 77 90 70 QSB3.9-G3 2450x900x1250 980 Download
A-C110-1 110 88 100 80 6BT5.9-G1 2900×1080×1500 1150 Download
A-C110-2 110 88 100 80 6BT5.9-G2 2900×1080×1500 1185 Download
A-C121 121 96 110 87 6BT5.9-G2 2900×1080×1500 1185 Download
A-C138 138 110 125 100 6BTA5.9-G2 2900×1080×1500 1280 Download
A-C150-1 150 119 136 109 QSB5.9-G3 3200×1080×1500 1350 Download
A-C150-2 150 119 136 109 6BTAA5.9-G2 3200×1080×1500 1280 Download
A-C175 175 140 160 127 6BTAA5.9-G12 3200×1080×1500 1300 Download
A-C203-1 203 163 185 148 6CTA8.3-G1 3200×1080×1500 1600 Download
A-C203-2 203 163 185 148 6CTA8.3-G2 3200×1080×1500 1550 Download
A-C210 210 167 190 152 QSB6.7-G4 3500×1126×1700 1550 Download
A-C220 220 176 200 160 6CTAA8.3-G2 3500×1126×1700 1700 Download
A-C275-1 275 220 250 200 MTA11-G2A 3900×1300×1900 2750 Download
A-C275-2 275 220 250 200 MTA11-G2 3900×1300×1900 2750 Download
A-C275-3 275 220 250 200 NTA855-G1 3900×1300×1900 3010 Download
A-C275-4 275 220 250 200 6LTAA8.9-G2 3500×1126×1700 1900 Download
A-C286 286 229 260 208 6LTAA8.9-G3 3500×1126×1700 2500 Download
A-C290 290 232 260 208 QSL8.9-G4 3500×1126×1700 1900 Download
A-C300 300 240 275 220 NTA855-G1A 3900×1300×1900 3010 Download
A-C312 312 250 284 227 6LTAA9.5-G3 3500×1126×1700 2500 Download
A-C344-1 344 275 313 250 MTAA11-G3 3900×1300×1900 2750 Download
A-C350 350 280 313 250 NTA855-G1B 3900×1300×1900 2900 Download
A-C344-3 344 275 313 250 NTA855-G2 3900×1300×1900 2900 Download
A-C344-4 344 275 313 250 6LTAA9.5-G1 3500×1126×1700 2750 Download
A-C378 378 302 343 275 NTA855-G2A 3900×1300×1900 2950 Download
A-C385 385 308 350 280 NTA855-G4 3900×1300×1900 3000 Download
A-C408 408 326 370 296 QSZ13-G6 3420×1150×2190 3140 Download
A-C413-1 413 330 375 300 NTAA855-G7 3900×1300×1900 2800 Download
A-C413-2 413 330 375 300 KTA19-G2 3580×1277×2065 3950 Download
A-C424-1 424 340 385 310 6ZTAA13-G3 4350×1450×2180 3220 Download
A-C424-2 424 340 385 310 6ZTAA13-G3 4350×1450×2180 3220 Download
A-C450 450 360 N/A N/A NTAA855-G7A 3000×1050×1780 2900 Download
A-C456 456 365 415 332 QSZ13-G7 3420×1150×2190 3140 Download
A-C484 484 387 440 352 6ZTAA13-G2 4350×1450×2180 3220 Download
A-C495-1 495 396 450 360 KTA19-G3 4700×1800×2380 2900 Download
A-C495-2 495 396 450 360 6ZTAA13-G4 4350×1450×2180 3220 Download
A-C495-3 495 396 450 360 QSZ13-G2 4700×1800×2380 3220 Download
A-C511 511 409 465 372 QSZ13-G5 4700×1800×2380 3220 Download
A-C550-1 550 440 500 400 KTA19-G3A 4700×1800×2380 4250 Download
A-C550-2 550 440 500 400 KTA19-G4 4700×1800×2380 4300 Download
A-C560 560 448 510 408 QSZ13-G3 4700×1800×2380 3220 Download
A-C575 575 462 525 420 KTAA19-G5 4700×1800×2380 4550 Download
A-C633 633 506 575 460 KTAA19-G6 4700×1800×2380 4550 Download
A-C650 650 520 N/A N/A KTA19-G8 4700×1800×2380 4550 Download
A-C688-1 688 550 N/A N/A KTAA19-G6A 4700×1800×2380 4700 Download
A-C688-2 687 550 625 500 KT38-G 6050×2438×2591 6000 Download
A-C784 784 627 713 570 KTA38-G1 6050×2438×2591 6150 Download
A-C800 800 640 725 580 KT38-GA 6050×2438×2591 6400 Download
A-C825 825 660 750 600 KTA38-G2 6050×2438×2591 6600 Download
A-C880 880 704 800 640 KTA38-G2B 6050×2438×2591 6700 Download
A-C1000 1000 800 910 728 KTA38-G2A 6050×2438×2591 6850 Download
A-C1100 1100 880 1000 800 KTA38-G5 6050×2438×2591 7150 Download
A-C1250 1250 1000 N/A N/A KTA38-G9 6050×2438×2591 7250 Download
A-C1375 1375 1100 1250 1000 KTA50-G3 12192×2438×2591 9140 Download
A-C1513 1513 1210 1375 1100 KTA50-G8 12192×2438×2591 9400 Download
A-C1650 1650 1320 1500 1200 KTA50-GS8 12192×2438×2591 9600 Download

Model Standby Power  Prime Power Engine Model Dimension (Silent Type) Weight Datasheet
kVA kW kVA kW LXWXH(MM) KG
A-C25H 25 20 23 18 4B3.9-G2 2300x 900x1250 765 Download
A-C38H 38 30 34 27 4BT3.9-G2 2300x 900x1250 770 Download
A-C50H 50 40 45 36 4BT3.9-G2 2300x 900x1250 790 Download
A-C60H 60 48 55 44 4BTA3.9-G2 2300x 900x1250 824 Download
A-C75H 75 60 68 55 4BTA3.9-G2 2300x 900x1250 824 Download
A-C100H 100 80 90 72 4BTA3.9-G11 2300x 900x1250 980 Download
A-C125H 125 100 114 91 6BT5.9-G2 2900×1080×1500 1185 Download
A-C150H 150 120 136 109 6BTA5.9-G2 2900×1080×1500 1185 Download
A-C165H 165 132 150 120 6BTAA5.9-G2 3200×1080×1500 1185 Download
A-C188H 188 150 170 136 6BTAA5.9-G12 3200×1080×1500 1300 Download
A-C220H 220 200 200 160 6CTA8.3-G2 3200×1080×1500 1550 Download
A-C250H 250 200 227 182 6CTAA8.3-G2 3500×1140×1700 1700 Download
A-C275H 275 220 N/A N/A NT855-GA 3900×1300×1900 2800 Download
A-C300H 300 240 273 218 6LTAA8.9-G2 3500×1140×1700 2200 Download
A-C344H 344 275 313 250 NTA855-G1 3900×1300×1900 2900 Download
A-C316H 316 253 288 230 6LTAA8.9-G3 3500×1140×1700 2250 Download
A-C330H 330 264 300 240 6LTAA9.5-G3 3500×1126×1700 2500 Download
A-C375H 375 300 344 275 NTA855-G1B 3900×1300×1900 2950 Download
A-C375H-1 375 300 344 275 NTA855-G2 3900×1300×1900 2950 Download
A-C347H 347 277 315 252 6LTAA9.5-G1 3500×1126×1700 2640 Download
A-C438H 438 350 398 318 NTA855-G3 3900×1300×1900 2950 Download
A-C424H 424 339 386 309 6ZTAA13-G3 3500×1126×1700 3220 Download
A-C445H 445 356 405 324 QSZ13-G6 4700×1800×2380 3140 Download
A-C481H 481 385 438 350 KTA19-G2 4700×1800×2380 2900 Download
A-C487H 487 389 443 354 6ZTAA13-G2 3500×1126×1700 3220 Download
A-C500H 500 400 455 364 6ZTAA13-G4 3500×1126×1700 3220 Download
A-C500H-1 500 400 455 364 QSZ13-G2 4700×1800×2380 3220 Download
A-C511H 511 409 465 372 QSZ13-G7 4700×1800×2380 3220 Download
A-C564H 564 451 512 410 KTA19-G3 4700×1800×2380 2900 Download
A-C563H 563 450 511 409 QSZ13-G5 4700×1800×2380 3220 Download
A-C563H-1 563 450 511 409 QSZ13-G3 4700×1800×2380 3220 Download
A-C625H 625 500 568 455 KTA19-G3A 4700×1800×2380 4250 Download
A-C618H-1 618 495 562 450 KTA19-G4 4700×1800×2380 4300 Download
A-C660H 660 528 600 480 KTAA19-G5 4700×1800×2380 4550 Download
A-C750H 750 600 N/A N/A KTAA19-G6A 4700×1800×2380 4550 Download
A-C850H 850 680 775 620 KT38-G 6050×2438×2591 6000 Download
A-C963H 963 770 875 700 KTA38-G1 6050×2438×2591 6150 Download
A-C997H 997 798 906 725 KTA38-G2 6050×2438×2591 6600 Download
A-C1031H 1031 825 938 750 KTA38-G2B 6050×2438×2591 6700 Download
A-C1100H 1100 880 1000 800 KTA38-G2A 6050×2438×2591 6850 Download
A-C1238H 1238 990 1125 900 KTA38-G4 6050×2438×2591 7150 Download
A-C1525H 1525 1220 N/A N/A KTA38-G9 6050×2438×2591 7250 Download
A-C1513H 1513 1210 1375 1100 KTA50-G3 12192×2438×2591 9140 Download
A-C1733H 1733 1386 1575 1260 KTA50-G9 12192×2438×2591 9400 Download

ATS



ATS cabinet is mainly applied to the automatic switch between prime and emergency power, composing an automatic emergency power supply system together with diesel generating sets. It will monitor prime power, When it is cut off, it can automatically switch loads such as emergency illumination, security power and fire fighting equipment to generating sets. Auto start, auto transfer, auto protection, auto power supply



Standard configuration:

  • Control option switch, transfer option switch, emergency stop, buzzer, voltmeter, ammeter, meter, controller, ATS Switch, breaker.
  • Multiple input/output functions can be customized.
  • Standard Capacity: From 20A-3200A



Brand: ABB, Schneider, Socome, Suyang, AISIKAI






PARALLEL DISTRIBUTION CABINET



Parallel distribution cabinet is designed for the parallel running of main power diesel generator sets. The system can operate automatically or be controlled manually.

The system has the functions of automatic frequency detection, synchronizing detection and switch-on.

It is convenient to expand the capacity to satisfy the need of increasing load.

It can be used together with multiple generating sets (32 parallel generating sets max.) to control multiple diesel generating sets for automatic synchronization.



It offers stable frequency and voltage and can bear large-capacity load impact, achieving reliable supply, centralized management and more flexible power allocation.








Load Bank



The purpose of most land banks is used to test of the emergency generator sets, verifying all genset components are in optimal working condition under different loads. Another purpose is working combined with the generator set, to take the load of the generator set is always above 30%



 Advantages of Load Bank

  • Confirming the gensets output capabilities as opposed to just starting it up on occasion.
  • Finding problems, instead of when an emergency arises, savings costs and prevents future breakdowns.
  • Helps to avoid wet-stacking and cleans out any carbon deposits.
  • Confirms that the engine cooling system will work efficiently under load.
  • Makes sure that the Genset will work properly when needed.



Four types of load banks are usually used to genset.

  • Resistive
  • Reactive
  • Intelligence






Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
Products Related Products
Cummins Gen set
Open Type Diesel Generator Powered by Cummins
Assembly by Cummins brand new engine and brand new single bearing alternator with IP23, class H. Options alternator Brands: Stamford, Leroy Somer, Marathon, Mecc Alte, Hosem, etc. Heavy-duty steel as the base plate with 8 hours operation fuel tank.  The extremely low noise level, the canopy is made of 2mm cold-rolled sheet, filled with 3cm thick flame retardant muffler cotton, complete gen-set with heavy-duty industrial type silencer with flexible bellow and elbow. Vibration damper between engine/alternator and base frame 3-pole circuit breaker. Options Controller brands: UK Deepsea, Czech ComAp, CN Smartgen etc. Full range protect function and alarm shutdown feature Comply with ISO8528 national standard and ISO9001 quality standard.
more details
Cummins generator set
Soundproof Diesel Generator Powered by Cummins
Assembly by Cummins brand new engine and brand new single bearing alternator with IP23, class H. Options alternator Brands: Stamford, Leroy Somer, Marathon, Mecc Alte, Hosem, etc. Heavy-duty steel as the base plate with 8 hours operation fuel tank.  The extremely low noise level, the canopy is made of 2mm cold-rolled sheet, filled with 3cm thick flame retardant muffler cotton, complete gen-set with heavy-duty industrial type silencer with flexible bellow and elbow. Vibration damper between engine/alternator and base frame 3-pole circuit breaker. Options Controller brands: UK Deepsea, Czech ComAp, CN Smartgen etc. Full range protect function and alarm shutdown feature Comply with ISO8528 national standard and ISO9001 quality standard.
more details
cummins generator
Powered by Cummins K19 Series Engine
Engine Model: CCEC KTA19 series Engine Type: 6-cylinder inline, four-stroke Displacement: 18.9 liters Bore and Stroke: 159 mm (6.25 in) x 159 mm (6.25 in) Fuel System: PT fuel system Cooling System: Water-cooled Turbocharger: Yes Aftercooler: Yes Governing System: Electronic or mechanical governor Starting System: Electric start Alternator Type: Brushless, self-excited Control Panel: Deepsea/ Smartgen Voltage Regulation: Automatic voltage regulation (AVR) Enclosure: Soundproof or weatherproof enclosure (optional) Fuel Tank: Integrated fuel tank (optional)
more details
generator Cummins 6B
Powered by Cummins 6B Series Engine
Assembly by Cummins brand new engine and brand new single bearing alternator with IP23, class H. Options alternator Brands: Stamford, Leroy Somer, Marathon, Mecc Alte, Hosem, etc. Heavy-duty steel as the base plate with 8 hours operation fuel tank.  The extremely low noise level, the canopy is made of 2mm cold-rolled sheet, filled with 3cm thick flame retardant muffler cotton, complete gen-set with heavy-duty industrial type silencer with flexible bellow and elbow. Vibration damper between engine/alternator and base frame 3-pole circuit breaker. Options Controller brands: UK Deepsea, Czech ComAp, CN Smartgen etc. Full range protect function and alarm shutdown feature Comply with ISO8528 national standard and ISO9001 quality standard.
more details
Generator Cummins
Powered by 6LTAA Series Engine
1. Powered by brand new original Cummins water-cooled diesel engine. 2. Alternator options: Brand new STAMFORD, LEROY SOMER, or Hosem single bearing 3 phase alternator with IP23 and H insulation class. 3. Copper 40ºC radiator with the engine-driven fan mounted on the skid. 4. Delixi or Chint branded case circuit breaker mounted. 5. Heavy-duty fabricated steel-based frame with built-in fuel tank for at least 8 hours of continuous running. 6. Complete set mounted on a based frame with anti-vibration mountings. 7. Industrial 9 dB muffler exhaust system with flexible connects and bellows. 8. Based frame with fuel, oil, and coolant drain cocks for easy maintenance. 9. 12/24V DC electric start system with free maintenance battery & smarten brand battery charger. 10. Set mounted automatic control panel, with SMARTGEN or Deepsea and ComAp controller module with AMF function for automatic start & stop. 11. Document supply: test report of the generator, set of drawings, and manuals.
more details
Cummins Generator
Powered by Cummins K38 Series Engine
1. Powered by Cummins G-drive engine,   1) Water cooling, 4 stroke, 12 cylinders   2) Radiation with water tank & fan & safeguard 3. Alternator: Original Stamford/Marathon (Made in China) or Hosem Brushless Alternator   1) Single bearing, 4pole, and self-excited brushless.   2) Insulation --H class, Protection -- IP22 (IP23 in marine)   3) AVR(auto voltage regulation) Control System: Key starting, Auto control panel, Remote control panel, ATS(Auto transfer switch)
more details
Cummins Diesel Generator
Powered by Cummins 4B Series Engine
1. Powered by brand new original Cummins water-cooled diesel engine. 2. Alternator options: Brand new STAMFORD, LEROY SOMER, or Hosem single bearing 3 phase alternator with IP23 and H insulation class. 3. Copper 40ºC radiator with the engine-driven fan mounted on the skid. 4. Delixi or Chint branded case circuit breaker mounted. 5. Heavy-duty fabricated steel-based frame with built-in fuel tank for at least 8 hours of continuous running. 6. Complete set mounted on a based frame with anti-vibration mountings. 7. Industrial 9 dB muffler exhaust system with flexible connects and bellows. 8. Based frame with fuel, oil, and coolant drain cocks for easy maintenance. 9. 12/24V DC electric start system with free maintenance battery & smarten brand battery charger. 10. Set mounted automatic control panel, with SMARTGEN or Deepsea and ComAp controller module with AMF function for automatic start & stop. 11. Document supply: test report of the generator, set of drawings, and manuals.
more details
Cummins Generador
Powered by Cummins 6CT Series Engine
The Cummins C Series engines have been widely used in heavy-duty machinery across construction, agriculture, and forestry industries—including cranes, excavators, and bulldozers. With over one million units sold globally, these engines have proven their reliability under the harshest and most demanding conditions.   Contact us right now to learn more details!
more details
Whatever your needs, our equipment will ensure your business is always on.
Get a quote

Leave A Message

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Home

Products

skype

whatsapp
