The Hosem Series Engine-Driven Welders are powered by globally recognized brands such as Cummins, Perkins, Deutz, FAW, and Quanchai. They offer welding currents ranging from 250A to 1000A and are equipped with advanced welding technologies, including MMA, GMAW, and TIG. For further information and detailed specifications, please do not hesitate to contact us.

Inquiry now

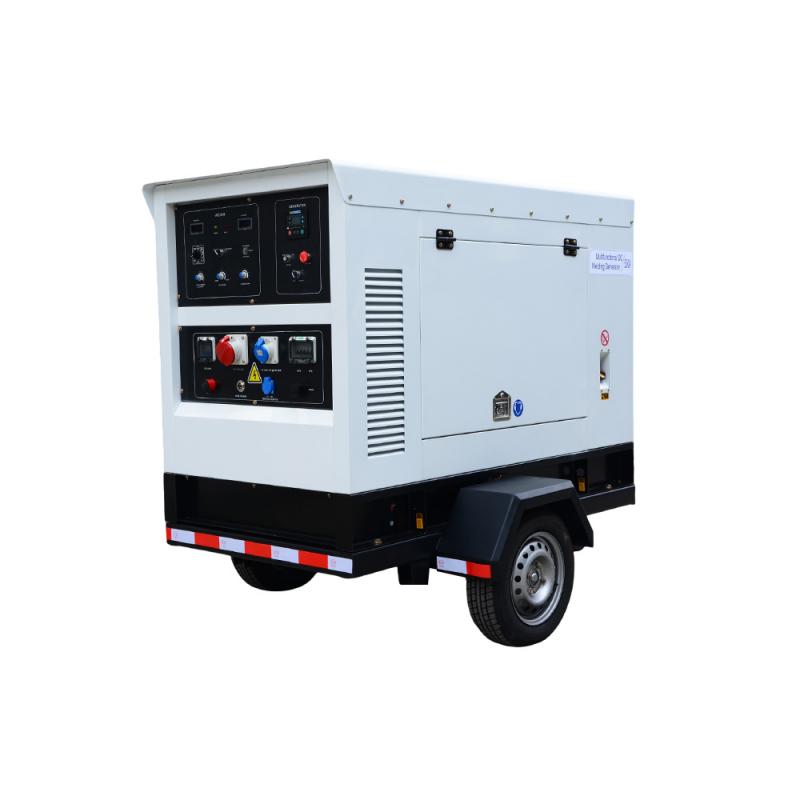

Multifunctional Engine Driven Welders / DC Welding Generator



Outstanding Features:

  1. High-quality low-speed diesel engine: Suitable for high-altitude and low-temperature environments. Offers optional diesel engines from renowned brands like Changchai, Fawde, Perkins, Deutz, Cummins, and other Chinese or international manufacturers.
  2. Intelligent welding technologies: Supports Manual Arc Welding (MMA), Gas Metal Arc Welding (GMAW), and Argon Arc Welding (TIG) to accommodate diverse welding processes.
  3. Advanced full-bridge phase-shift resonance oscillation soft-switch DC/AC converter: Ensures fast dynamic response and excellent welding performance.
  4. Dual welding output design: Models ADC700 and ADC1000 feature independent dual welding torches for simultaneous operation.
  5. Overheat and overcurrent protection: Automatically safeguards equipment during excessive current or temperature conditions.
  6. Intelligent control system: Automates diesel engine start/stop and provides comprehensive protections (high temperature, low oil pressure, overspeed, low/high frequency, low/high voltage, overcurrent).



Special Alternator Design:

  1. During welding: Supplies balanced three-phase and single-phase AC power for worksite equipment.
  2. Non-welding mode: Fully provides three-phase and single-phase electricity.
  3. Soundproof and weatherproof: Designed for outdoor operation.
  4. Generator output: Configurable for 50Hz/60Hz and various voltages to meet global standards.
  5. Optional trailer: Enhances mobility for worksite relocation.

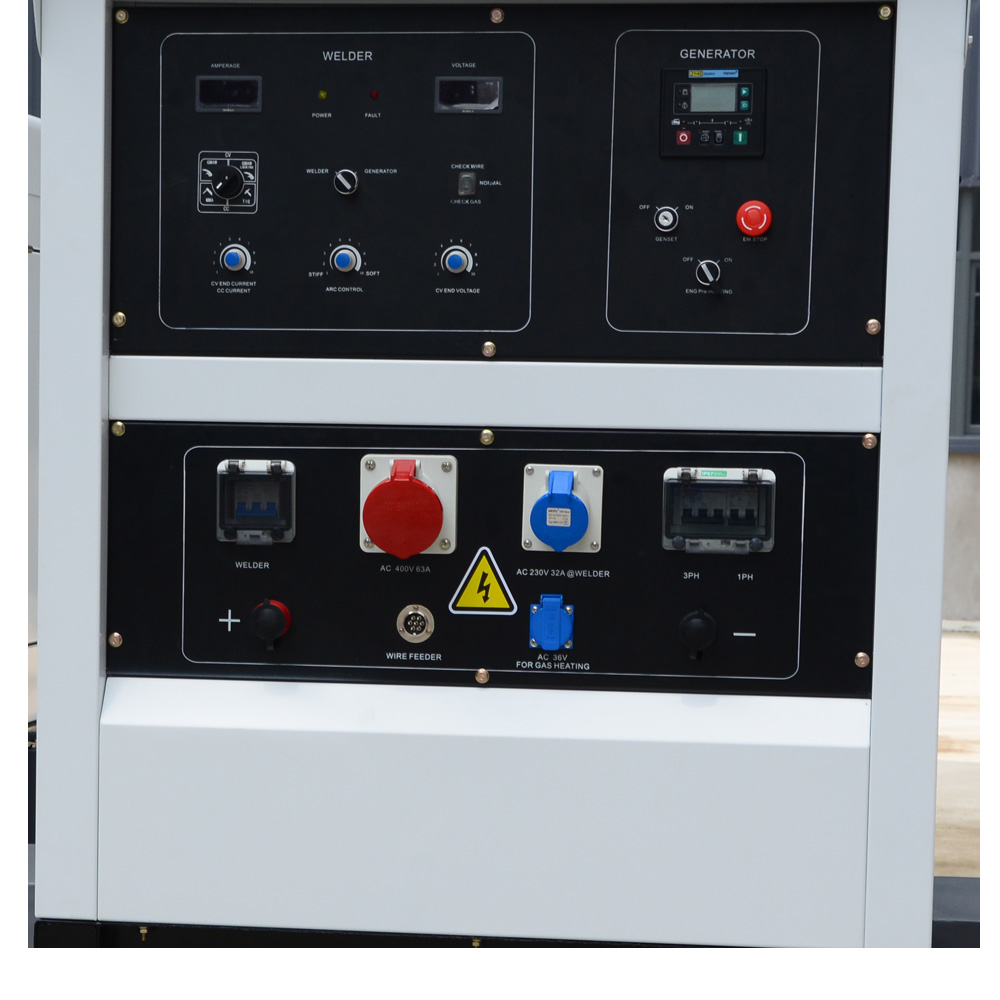

Engine Driven Welders Control Panel

Contact Us right now for more information

Parameter/Model ADC-270S ADC-320S ADC-270 ADC-350 ADC-500 ADC-700 ADC-1000
Welding Current (A) (80% Load) 30 – 270 30 – 320 30 – 270 60 – 350 60 – 500 2*(60 – 350) 2*(60 – 500)
Welding Current (A) (100% Load) 30 – 250 30 – 270 30 – 250 60 – 320 60 – 450 2*(60 – 320) 2*(60 – 450)
Welding Voltage (V) — — 15 – 40 15 – 40 15 – 50 2*(15 – 40) 2*(15 – 50)
Open Circuit Voltage (CV) (V) — — 51 72 81 72 81
Open Circuit Voltage (CC) (V) 9 9 9 9 25 — —
Welding Method Manual Welding (MMA) Manual Welding (MMA) MMA/GMAW/TIG Same as left Same as left Same as left Same as left
Number of Welding Torches 1 1 1 1 1 2 2
Electrode Diameter (mm) 2–4 2–4 2–4 2–6 2–6 2–6 2–6
Wire Diameter (mm) — 0.8–1 0.8–1.2 1–1.6 0.8–1.2 0.8–1.2 1–1.6
Tungsten Electrode Diameter (mm) — 1–4 1–4 1–6 — — —
GMAW Wire Feeding Method — — Jogging Feed — — — —
Shielding Gas Flow Rate (L/min) — — — 15 – 25 — — —
Generator Output (50Hz, COS φ=0.9)
Output Type Single/Three Phase Single/Three Phase Single/Three Phase Single/Three Phase Single/Three Phase Single/Three Phase Single/Three Phase
Voltage (V) 230/400 230/400 230/400 240/415 230 — —
Rated Output (kVA) 3.8 / 10 3.8 / 12.5 3.8 / 13.5 12.5 / 7.5 7.5 — —
Max Output (kVA) 4.2 / 11 4.2 / 13.8 4.2 / 13.8 4.2 / 14.5 33 — —
Max Current (A) 18.2 / 15.8 18.2 / 19.9 18.2 / 18.2 20.8 / 36 38 — —
Steady Voltage Deviation (%) — — — — — — —
Diesel Engine Model CZ480Q CZ480Q CZ480Q ZN495Q CZ4102 R4105D1-1 R4105ZD1-1
Brand Changchai Changchai Changchai Changchai Changchai Weichai Weichai
Rated Power (kW) 15 15 15 24 33 46 61.6
Cooling Method Water-cooled Water-cooled Water-cooled Water-cooled Water-cooled Water-cooled Water-cooled
Protection Features High Water Temp, Low Oil Pressure, Overspeed Same as left Same as left Same as left Same as left Same as left Same as left
Fuel Tank Capacity (L) 35 35 35 60 100 150 150
Fuel Consumption at Full Load (L/H) 3.4 3.5 3.5 7.6 9.5 12.3 14
Weight (kg) 480 530 530 600 650 820 850
Dimensions (L×W×H mm) 1550×700×1100 1550×700×1100 1550×700×1100 1800×750×1400 1900×800×1500 2200×900×1600 2200×900×1600
